DTC U0242: Lost Communication With Headlamp Control Module "B" [10/2015 - 08/2019]: Wiring Diagram

  1. for Single Beam Headlight without AFS (Adaptive Front-lighting System)

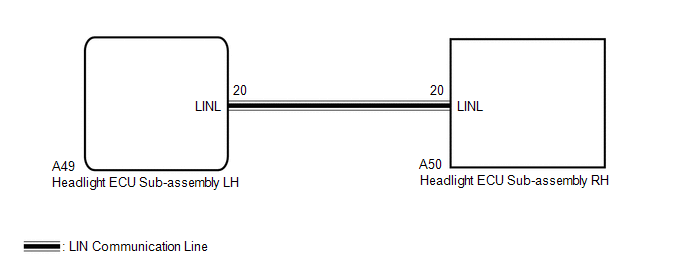

    GTY682199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for Triple Beam Headlight, for Single Beam Headlight with AFS (Adaptive Front-lighting System)

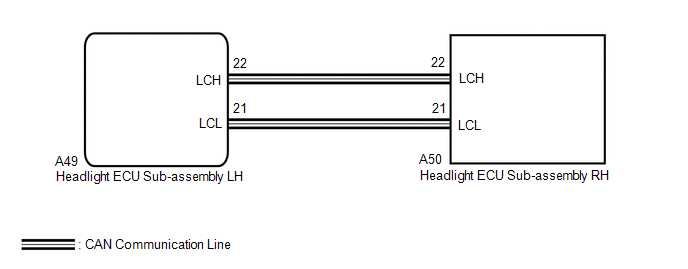

    GTY649531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
