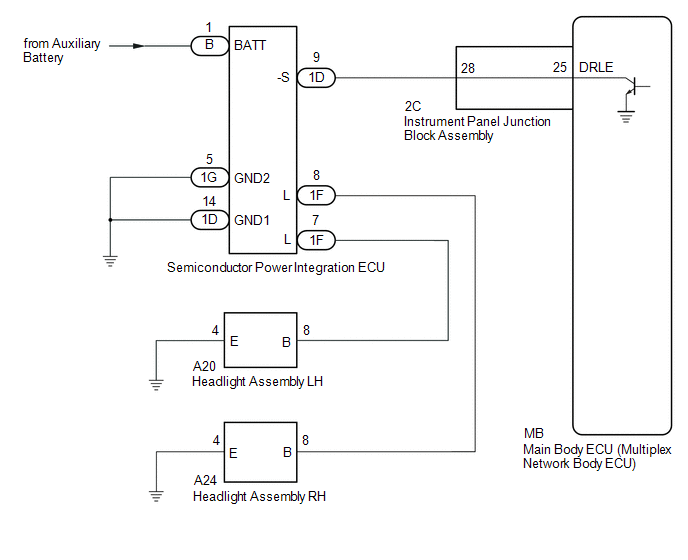

Daytime Running Light Relay Circuit [08/2019 - ]: Wiring Diagram

GTY959405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
