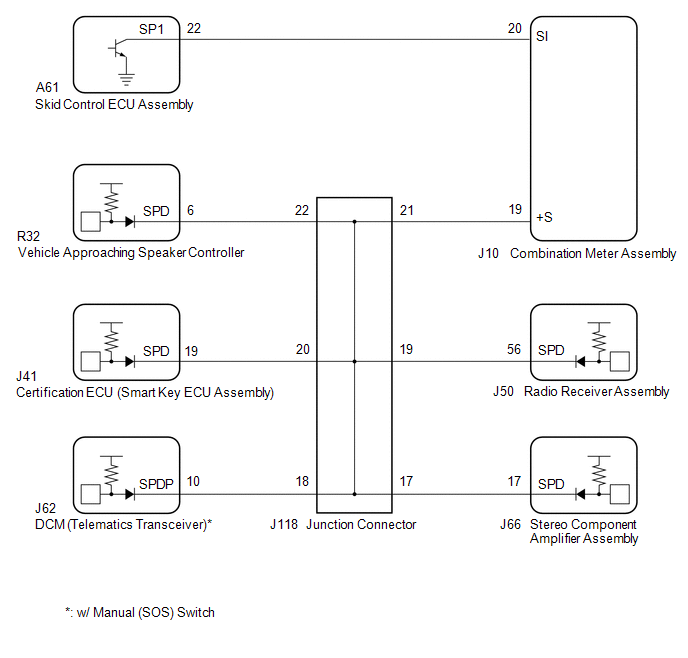

Vehicle Speed Signal Circuit between Stereo Component Amplifier and Combination Meter [10/2015 - 12/2017]: Wiring Diagram

GTY626095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
