Fuse Block Assembly No. 1: Notes

For additional information, refer to Figure.

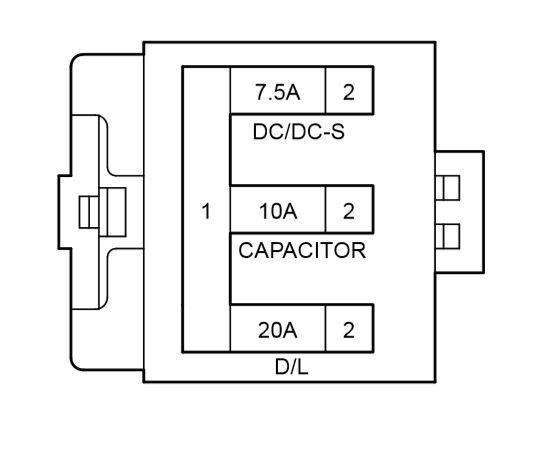

Fig 1: Fuse Block Assembly No. 1 Identification
G00584368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
FUSE BOX BLOCK ASSEMBLY NO. 1 FUSE IDENTIFICATION LEGEND

Fuse
7.5A DCDC-S
10A CAPACITOR
20A D/L
