Fuse Block Assembly No. 2: Notes

For additional information, refer to Figure.

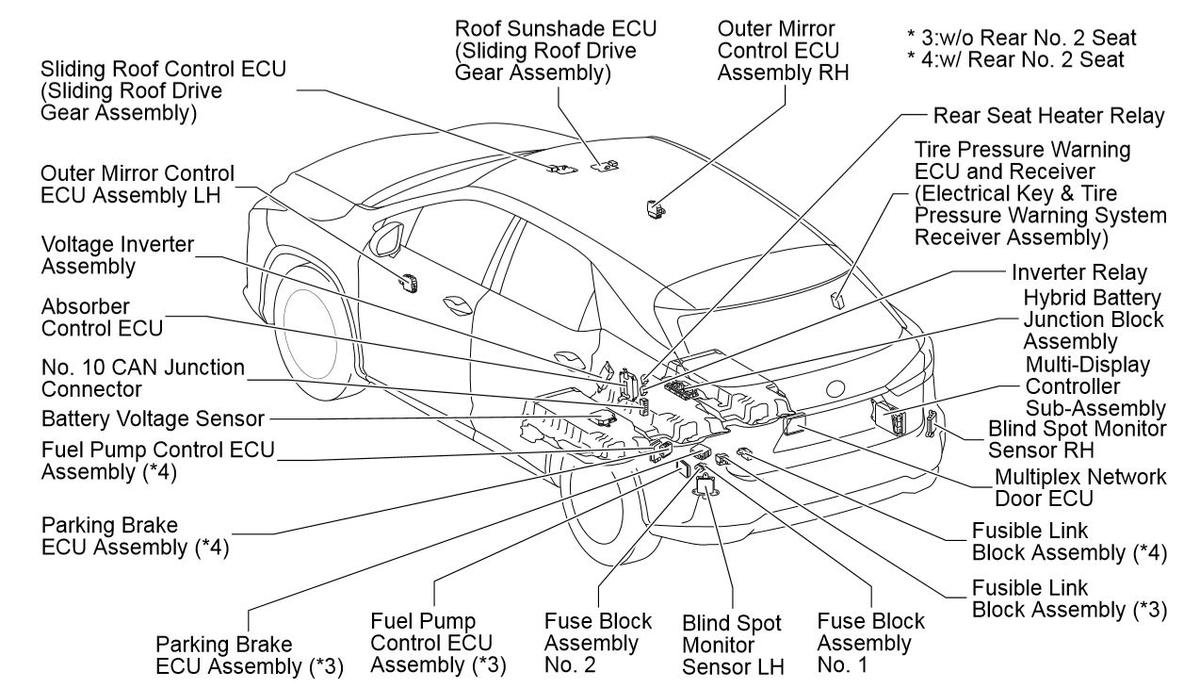

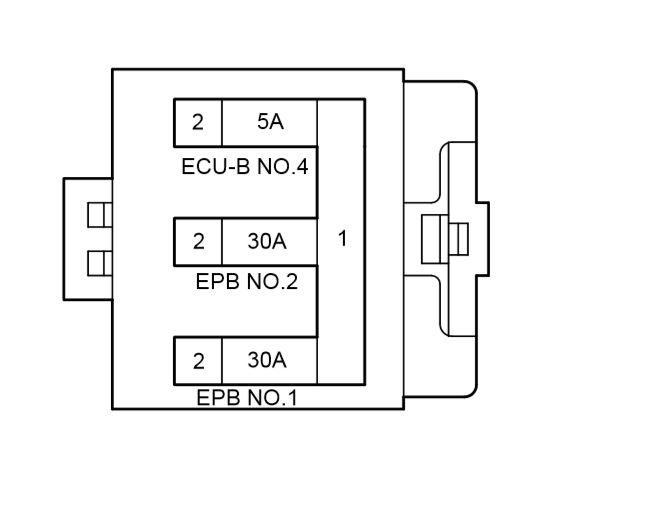

Fig 1: Fuse Block Assembly No. 2 Identification
G00584369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
FUSE BOX BLOCK ASSEMBLY NO. 2 FUSE IDENTIFICATION LEGEND

Fuse
5A ECU-B NO. 4
30A EPB NO. 1
30A EPB NO. 2
