System Diagram [10/2015 - ]

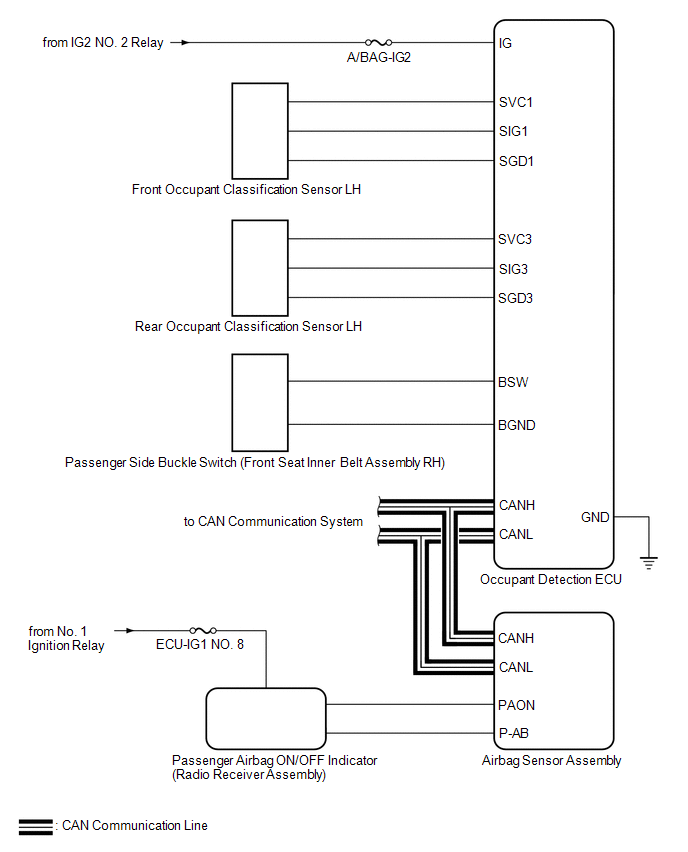

Fig 1: Occupant Classification System Diagram
GTY666335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Transmitting ECU
(Transmitter)		 Receiving ECU Signal Communication Method
Airbag Sensor Assembly Occupant Detection ECU
  1. Crash detection signal
 CAN
Yaw Rate Sensor Assembly Occupant Detection ECU
  1. Acceleration signal
Skid Control ECU Assembly Occupant Detection ECU
  1. Vehicle speed signal
Occupant Detection ECU Airbag Sensor Assembly
  • Occupant classification system failure signal
  • Occupant classification system zero point error signal
  • Occupant state for passenger signal
  • Buckle switch state of passenger signal
