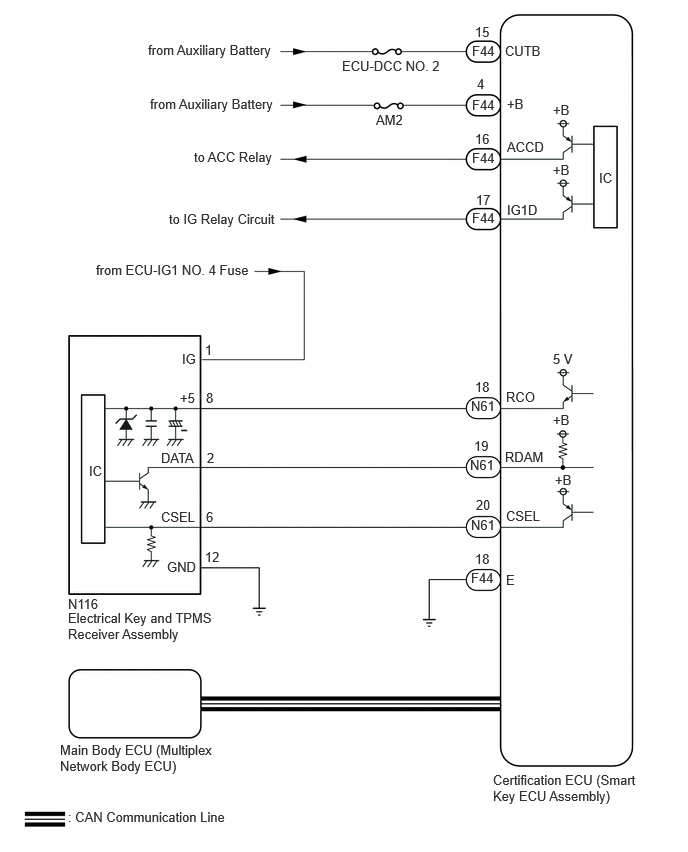

All Door Entry Lock/Unlock Functions and Wireless Functions do not Operate [08/2021 - ]: Wiring Diagram

GTY1087781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
