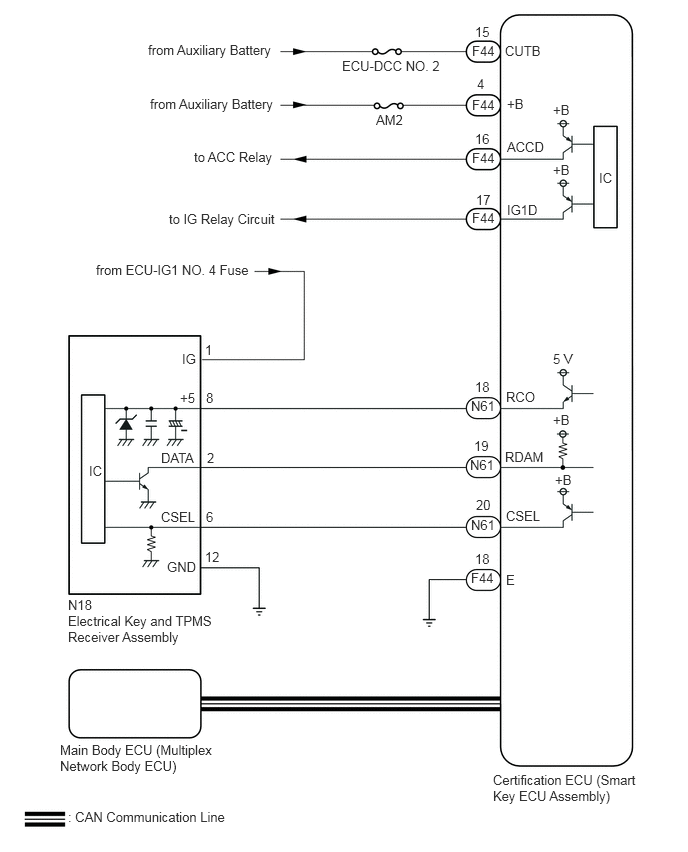

All Door Entry Lock/Unlock Functions and Wireless Functions do not Operate [10/2018 - 08/2021]: Wiring Diagram

GTY777138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
