System Diagram [08/2021 - 07/2022]

  1. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Start Function, HV Model)

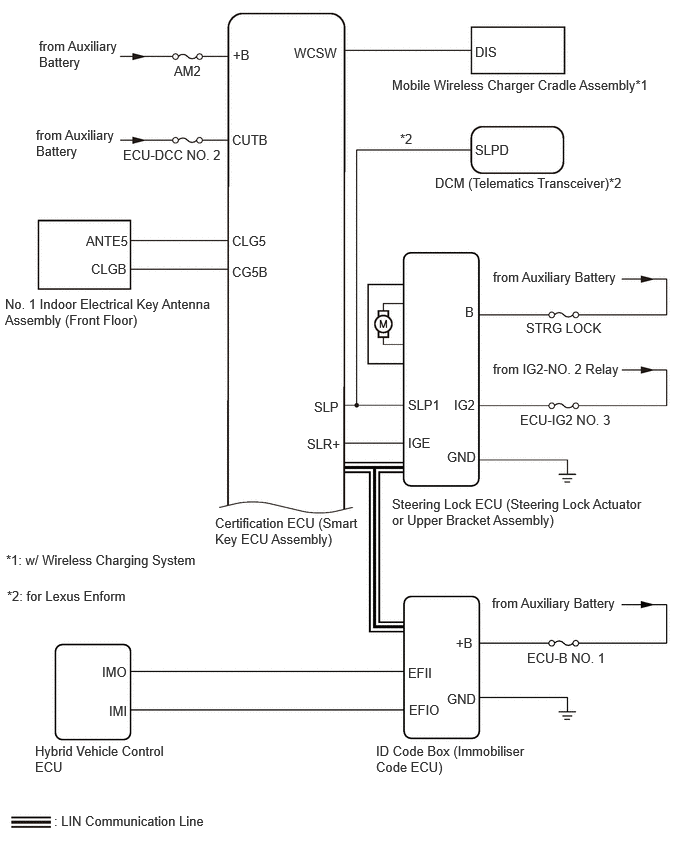

    GTY1087533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

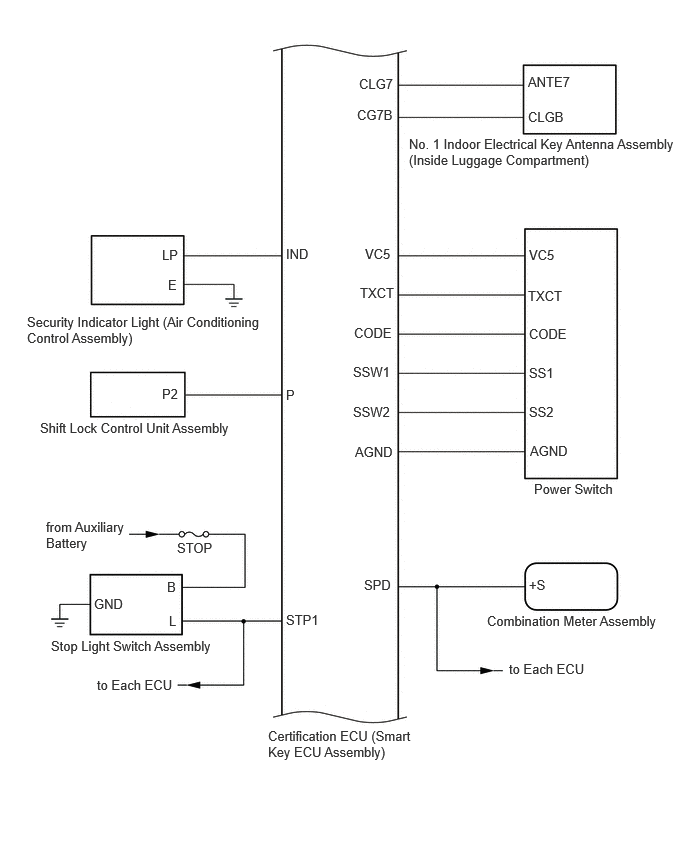

    GTY1087722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY838260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Entry Function, HV Model)

    Refer to SYSTEM DIAGRAM [08/2021 - 07/2022]
