DTC U1177-87: Lost Communication with Side Obstacle Detection Control Module "A" (ch2) Missing Message; DTC U117887: Lost Communication with Side Obstacle Detection Control Module "B" (ch2) Missing Message [10/2018 - ]: Procedure

  1. CHECK FOR DTC
    1. Using the Techstream, check for parking support brake system DTCs.

      Refer to DTC CHECK / CLEAR [10/2018 - ]

      Body Electrical > Clearance Warning > Trouble Codes

      Result

      Result Proceed to
      DTC U117787 only is output A
      DTC U117887 only is output B
      DTC U117787 and U117887 are output C

    Result:

    B

    See step  4

    Result:

    C

    See step  6

    Result:

    A

    See step  2

  2. CHECK HARNESS AND CONNECTOR (BLIND SPOT MONITOR SENSOR LH (B) - BODY GROUND)
    1. Disconnect the connector of the blind spot monitor sensor LH (B) connector.

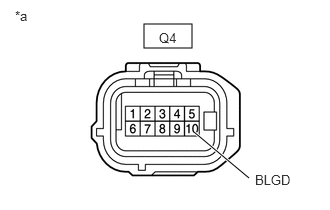

      GTY805331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Blind Spot Monitor Sensor LH (B))
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      Q4-10 (BLGD) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR (BLIND SPOT MONITOR SENSOR LH (B) - POWER SOURCE)
    1. Disconnect the connector of the blind spot monitor sensor LH (B).

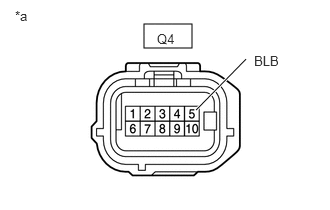

      GTY805332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Blind Spot Monitor Sensor LH (B))
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      Q4-5 (BLB) - Body ground Ignition Switch ON 11 to 14 V
      Q4-5 (BLB) - Body ground Ignition switch off Below 1 V

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE BLIND SPOT MONITOR SENSOR LH (B). Refer to  REMOVAL [10/2018 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  4. CHECK HARNESS AND CONNECTOR (BLIND SPOT MONITOR SENSOR RH (A) - BODY GROUND)
    1. Disconnect the connector of the blind spot monitor sensor RH (A).

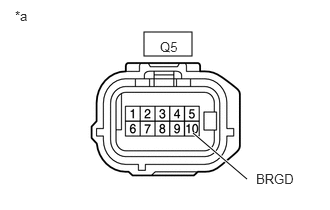

      GTY805330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Blind Spot Monitor Sensor RH (A))
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      Q5-10 (BRGD) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  5

  5. CHECK HARNESS AND CONNECTOR (BLIND SPOT MONITOR SENSOR RH (A) - POWER SOURCE)
    1. Disconnect the blind spot monitor sensor RH (A) connector.

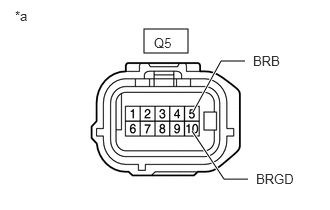

      GTY805513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Blind Spot Monitor Sensor RH (A))
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      Q5-5 (BRB) - Body ground Ignition switch ON 11 to 14 V
      Q5-5 (BRB) - Body ground Ignition switch off Below 1 V

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE BLIND SPOT MONITOR SENSOR RH (A). Refer to  REMOVAL [10/2018 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  6. CHECK CAN BUS (CONFIRM PROBLEM SYMPTOMS)
    1. Turn the ignition switch off.
    2. Disconnect the cable from the negative (-) auxiliary battery terminal.
    3. Measure the resistance according to the value(s) in the table below.

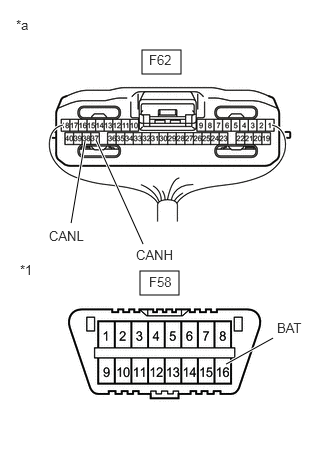

      GTY789010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with wire harness connected
      (Clearance warning ECU Assembly)
      *1 DLC3

      Standard Resistance

      Tester Connection Condition Specified Condition Confirm the problem symptoms
      F62-37 (CANH) - F62-38 (CANL) Disconnect cable from negative (-) auxiliary battery terminal 54 to 69 Ω Below 54 Ω: Short in line
      70 Ω or higher: Open in main line
      F62-37 (CANH) - Body ground Disconnect cable from negative (-) auxiliary battery terminal 200 Ω or higher Below 200 Ω: Short to ground
      F62-38 (CANL) - Body ground Disconnect cable from negative (-) auxiliary battery terminal 200 Ω or higher Below 200 Ω: Short to ground
      F62-37 (CANH) - F58-16 (BAT) Disconnect cable from negative (-) auxiliary battery terminal 6 kΩ or higher Below 6 kΩ: Short to +B
      F62-38 (CANL) - F58-16 (BAT) Disconnect cable from negative (-) auxiliary battery terminal 6 kΩ or higher Below 6 kΩ: Short to +B

      Result

      Result Proceed to
      OK A
      NG (open in main line) B
      NG (short in line) C
      NG (short to +B or ground) D

    Result:

    B

    See step  9

    Result:

    C

    See step  13

    Result:

    D

    See step  17

    Result:

    A

    See step  7

  7. CLEAR DTCS
    1. Using the Techstream, clear the DTCs.

      Refer to DTC CHECK / CLEAR [10/2018 - ]

      Body Electrical > Clearance Warning > Clear DTCs

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  8

  8. CHECK FOR DTC
    1. Check for DTCs.

      Refer to DTC CHECK / CLEAR [10/2018 - ]

      Body Electrical > Clearance Warning > Trouble Codes

      Result

      Result Proceed to
      DTC U117787 and U117887 are output A
      DTC U117787 and U117887 are not output B

    Result:

    A

    REPLACE CLEARANCE WARNING ECU ASSEMBLY. Refer to  REMOVAL [10/2018 - 07/2022]  Refer to  REMOVAL [07/2022 - ]

    Result:

    B

    GO TO PROBLEM SYMPTOM SIMULATION METHOD. Refer to  PROBLEM SYMPTOMS TABLE [10/2018 - 07/2022]  Refer to  PROBLEM SYMPTOMS TABLE [07/2022 - ]

  9. CHECK FOR OPEN IN CAN BUS WIRE (NO. 5 JUNCTION CONNECTOR)
    1. Disconnect the No. 5 CAN junction connectors.

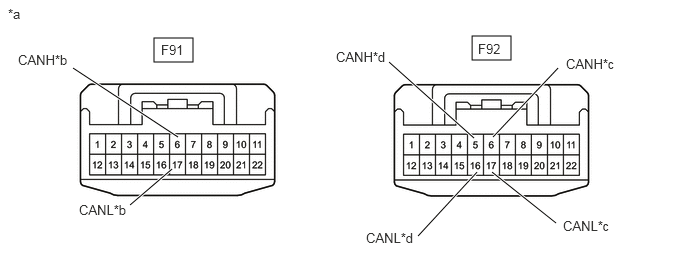

      GTY789685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 5 CAN Junction Connector)      		 *b to Clearance Warning ECU Assembly CAN Wire
      *c to Blind Spot Monitor Sensor RH (A) CAN Main Wire *d to Blind Spot Monitor Sensor LH (B) CAN Main Wire
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      F91-6 (CANH) - F91-17 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F92-5 (CANH) - F92-16 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
      F92-6 (CANH) - F92-17 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result Proceed to
      OK A
      NG (to blind spot monitor sensor LH (B) CAN main wire) B
      NG (to blind spot monitor sensor RH (A) CAN main wire) C
      NG (to clearance warning ECU assembly CAN wire) D

    Result:

    A

    REPLACE NO. 5 CAN JUNCTION CONNECTOR

    Result:

    C

    See step  11

    Result:

    D

    See step  12

    Result:

    B

    See step  10

  10. CHECK FOR OPEN IN CAN BUS MAIN WIRE (BLIND SPOT MONITOR SENSOR LH (B))
    1. Reconnect the F92 No. 5 CAN junction connector.

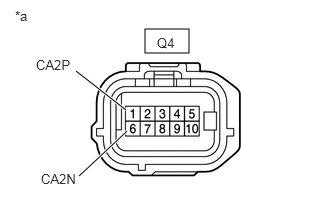

      GTY833923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Blind Spot Monitor Sensor LH (B))
    2. Disconnect the Q4 blind spot monitor sensor LH (B) connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      Q4-1 (CA2P) - Q4-6 (CA2N) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE BLIND SPOT MONITOR SENSOR LH (B). Refer to  REMOVAL [10/2018 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (BLIND SPOT MONITOR SENSOR LH (B) - NO. 5 CAN JUNCTION CONNECTOR)

  11. CHECK FOR OPEN IN CAN BUS MAIN WIRE (BLIND SPOT MONITOR SENSOR RH (A))
    1. Reconnect the F92 No. 5 CAN junction connector.
      GTY805509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Blind Spot Monitor Sensor RH (A))
    2. Disconnect the Q5 blind spot monitor sensor RH (A) connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      Q5-1 (CA2P) - Q5-6 (CA2N) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE BLIND SPOT MONITOR SENSOR RH (A). Refer to  REMOVAL [10/2018 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (BLIND SPOT MONITOR SENSOR RH (A) - NO. 5 CAN JUNCTION CONNECTOR)

  12. CHECK FOR OPEN IN CAN BUS WIRE (CLEARANCE WARNING ECU ASSEMBLY)
    1. Reconnect the No. 5 CAN junction connectors.

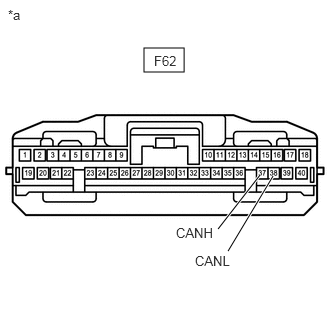

      GTY800139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Clearance Warning ECU Assembly)
    2. Disconnect the F62 clearance warning ECU connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      F62-37 (CANH) - F62-38 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CLEARANCE WARNING ECU ASSEMBLY. Refer to  REMOVAL [10/2018 - 07/2022]  Refer to  REMOVAL [07/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BUS WIRE (CLEARANCE WARNING ECU ASSEMBLY - NO. 5 CAN JUNCTION CONNECTOR)

  13. CHECK FOR SHORT IN CAN BUS WIRES (NO. 5 JUNCTION CONNECTOR)
    1. Disconnect the No. 5 CAN junction connectors.

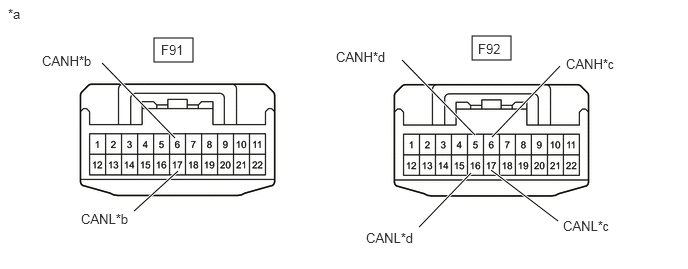

      GTY789684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 5 CAN Junction Connector)      		 *b to Clearance Warning ECU Assembly CAN Wire
      *c to Blind Spot Monitor Sensor RH (A) CAN Main Wire *d to Blind Spot Monitor Sensor LH (B) CAN Main Wire
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      F91-6 (CANH) - F91-17 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F92-5 (CANH) - F92-16 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
      F92-6 (CANH) - F92-17 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result Proceed to
      OK A
      NG (to blind spot monitor sensor LH (B) CAN main wire) B
      NG (to blind spot monitor sensor RH (A) CAN main wire) C
      NG (to clearance warning ECU assembly CAN wire) D

    Result:

    A

    REPLACE NO. 5 CAN JUNCTION CONNECTOR

    Result:

    C

    See step  15

    Result:

    D

    See step  16

    Result:

    B

    See step  14

  14. CHECK FOR SHORT IN CAN BUS WIRES (BLIND SPOT MONITOR SENSOR LH (B))
    1. Reconnect the F92 No. 5 CAN junction connector.

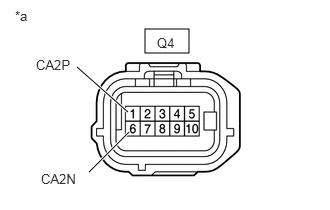

      GTY805510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Blind Spot Monitor Sensor LH (B))
    2. Disconnect the Q4 blind spot monitor sensor LH (B) connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      Q4-1 (CA2P) - Q4-6 (CA2N) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE BLIND SPOT MONITOR SENSOR LH (B). Refer to  REMOVAL [10/2018 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (BLIND SPOT MONITOR SENSOR LH (B) - NO. 5 CAN JUNCTION CONNECTOR)

  15. CHECK FOR SHORT IN CAN BUS WIRES (BLIND SPOT MONITOR SENSOR RH (A))
    1. Reconnect the F92 No. 5 CAN junction connector.
      GTY805511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Blind Spot Monitor Sensor RH (A))
    2. Disconnect the Q5 blind spot monitor sensor RH (A) connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      Q5-1 (CA2P) - Q5-6 (CA2N) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE BLIND SPOT MONITOR SENSOR RH (A). Refer to  REMOVAL [10/2018 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (BLIND SPOT MONITOR SENSOR RH (A) - NO. 5 CAN JUNCTION CONNECTOR)

  16. CHECK FOR SHORT IN CAN BUS WIRES (CLEARANCE WARNING ECU ASSEMBLY)
    1. Reconnect the No. 5 CAN junction connectors.

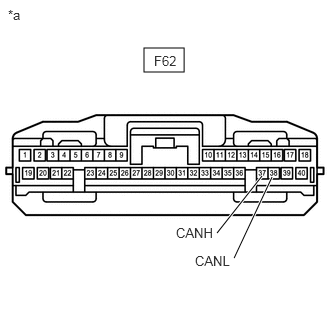

      GTY800138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Clearance Warning ECU Assembly)
    2. Disconnect the F62 clearance warning ECU connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      F62-37 (CANH) - F62-38 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CLEARANCE WARNING ECU ASSEMBLY. Refer to  REMOVAL [10/2018 - 07/2022]  Refer to  REMOVAL [07/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BUS WIRE (CLEARANCE WARNING ECU ASSEMBLY - NO. 5 CAN JUNCTION CONNECTOR)

  17. CHECK FOR SHORT IN CAN BUS (BLIND SPOT MONITOR SENSOR LH (B) CONNECTION MAIN LINE)
    1. Disconnect the No. 5 CAN junction connector.
      GTY803942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 5 CAN Junction Connector)      		 *1 DLC3
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      F92-5 (CANH) - Body ground Disconnect cable from negative (-) auxiliary battery terminal 200 Ω or higher
      F92-16 (CANL) - Body ground Disconnect cable from negative (-) auxiliary battery terminal 200 Ω or higher
      F92-5 (CANH) - F58-16 (BAT) Disconnect cable from negative (-) auxiliary battery terminal 6 kΩ or higher
      F92-16 (CANL) - F58-16 (BAT) Disconnect cable from negative (-) auxiliary battery terminal 6 kΩ or higher

      HINT:

      Check for short that was confirmed to be a malfunction by confirming symptoms.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  22

    Result:

    OK

    See step  18

  18. CHECK FOR SHORT IN CAN BUS (BLIND SPOT MONITOR SENSOR RH (A) CONNECTION MAIN LINE)
    1. Disconnect the No. 5 CAN junction connector.
      GTY833576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 5 CAN Junction Connector)      		 *1 DLC3
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      F92-6 (CANH) - Body ground Disconnect cable from negative (-) auxiliary battery terminal 200 Ω or higher
      F92-17 (CANL) - Body ground Disconnect cable from negative (-) auxiliary battery terminal 200 Ω or higher
      F92-6 (CANH) - F58-16 (BAT) Disconnect cable from negative (-) auxiliary battery terminal 6 kΩ or higher
      F92-17 (CANL) - F58-16 (BAT) Disconnect cable from negative (-) auxiliary battery terminal 6 kΩ or higher

      HINT:

      Check for short that was confirmed to be a malfunction by confirming symptoms.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  21

    Result:

    OK

    See step  19

  19. CHECK FOR SHORT IN CAN BUS (CLEARANCE WARNING ECU ASSEMBLY CONNECTION BRANCH LINE)
    1. Reconnect the No. 5 CAN junction connector.

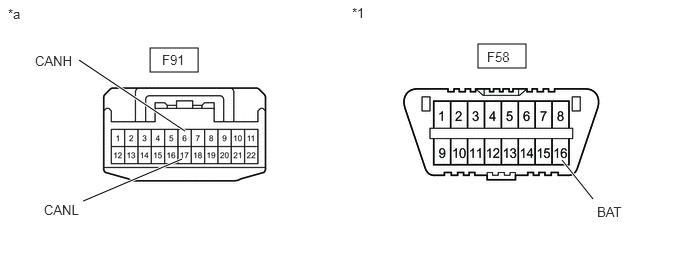

      GTY803940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 5 CAN Junction Connector)      		 *1 DLC3
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      F91-6 (CANH) - Body ground Disconnect cable from negative (-) auxiliary battery terminal 200 Ω or higher
      F91-17 (CANL) - Body ground Disconnect cable from negative (-) auxiliary battery terminal 200 Ω or higher
      F91-6 (CANH) - F58-16 (BAT) Disconnect cable from negative (-) auxiliary battery terminal 6 kΩ or higher
      F91-17 (CANL) - F58-16 (BAT) Disconnect cable from negative (-) auxiliary battery terminal 6 kΩ or higher

      HINT:

      Check for short that was confirmed to be a malfunction by confirming symptoms.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 5 CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  20

  20. CHECK FOR SHORT IN CAN BUS (CLEARANCE WARNING ECU ASSEMBLY)
    1. Reconnect the F92 No. 5 CAN junction connector.

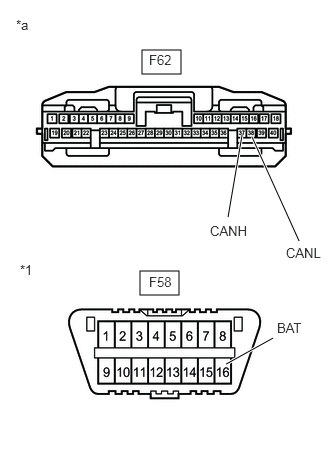

      GTY801543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Clearance Warning ECU Assembly)
      *1 DLC3
    2. Disconnect the connector of the clearance warning ECU assembly.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      F62-37 (CANH) - Body ground Disconnect cable from negative (-) auxiliary battery terminal 200 Ω or higher
      F62-38 (CANL) - Body ground Disconnect cable from negative (-) auxiliary battery terminal 200 Ω or higher
      F62-37 (CANH) - F58-16 (BAT) Disconnect cable from negative (-) auxiliary battery terminal 6 kΩ or higher
      F62-38 (CANL) - F58-16 (BAT) Disconnect cable from negative (-) auxiliary battery terminal 6 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CLEARANCE WARNING ECU ASSEMBLY. Refer to  REMOVAL [10/2018 - 07/2022]  Refer to  REMOVAL [07/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BUS BRANCH LINE OR CONNECTOR (CLEARANCE WARNING ECU ASSEMBLY - NO. 5 CAN JUNCTION CONNECTOR)

  21. CHECK FOR SHORT IN CAN BUS (BLIND SPOT MONITOR SENSOR RH (A))
    1. Reconnect the F92 No. 5 CAN junction connector.

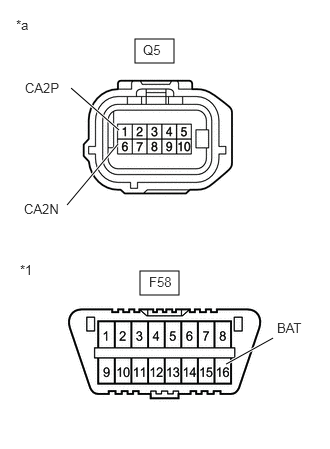

      GTY807507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Blind Spot Monitor Sensor RH (A))
      *1 DLC3
    2. Disconnect the Q5 blind spot monitor sensor RH (A).
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      Q5-1 (CA2P) - Body ground Disconnect cable from negative (-) auxiliary battery terminal 200 Ω or higher
      Q5-6 (CA2N) - Body ground Disconnect cable from negative (-) auxiliary battery terminal 200 Ω or higher
      Q5-1 (CA2P) - F58-16 (BAT) Disconnect cable from negative (-) auxiliary battery terminal 6 kΩ or higher
      Q5-6 (CA2N) - F58-16 (BAT) Disconnect cable from negative (-) auxiliary battery terminal 6 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE BLIND SPOT MONITOR SENSOR RH (A). Refer to  REMOVAL [10/2018 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BUS MAIN LINE OR CONNECTOR (BLIND SPOT MONITOR SENSOR RH (A) - NO. 5 CAN JUNCTION CONNECTOR)

  22. CHECK FOR SHORT IN CAN BUS (BLIND SPOT MONITOR SENSOR LH (B))
    1. Reconnect the F92 No. 5 CAN junction connector.
      GTY834364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Blind Spot Monitor Sensor LH (B))
      *1 DLC3
    2. Disconnect the connector of the blind spot monitor sensor LH (B).
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      Q4-1 (CA2P) - Body ground Disconnect cable from negative (-) auxiliary battery terminal 200 Ω or higher
      Q4-6 (CA2N) - Body ground Disconnect cable from negative (-) auxiliary battery terminal 200 Ω or higher
      Q4-1 (CA2P) - F58-16 (BAT) Disconnect cable from negative (-) auxiliary battery terminal 6 kΩ or higher
      Q4-6 (CA2N) - F58-16 (BAT) Disconnect cable from negative (-) auxiliary battery terminal 6 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE BLIND SPOT MONITOR SENSOR LH (B). Refer to  REMOVAL [10/2018 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BUS MAIN LINE OR CONNECTOR (BLIND SPOT MONITOR SENSOR LH (B) - NO. 5 CAN JUNCTION CONNECTOR)

scientia non olet · About LEMON Manuals
