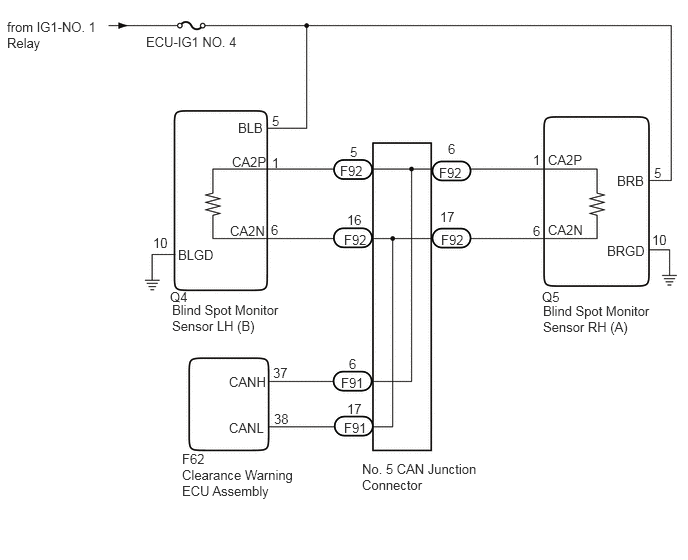

DTC U1177-87: Lost Communication with Side Obstacle Detection Control Module "A" (ch2) Missing Message; DTC U117887: Lost Communication with Side Obstacle Detection Control Module "B" (ch2) Missing Message [10/2018 - ]: Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
