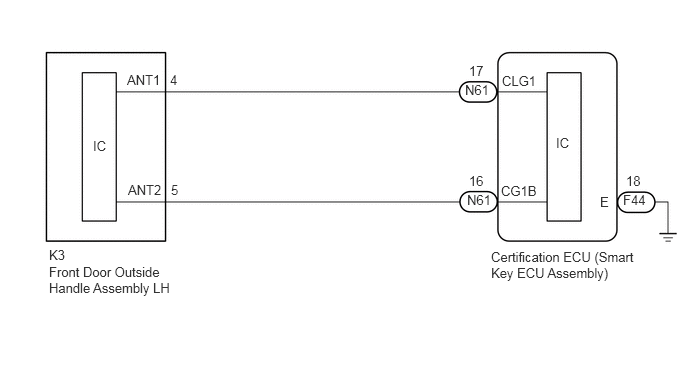

Driver Side Door Entry Lock Function does not Operate [10/2018 - ]: Wiring Diagram

GTY783898

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
