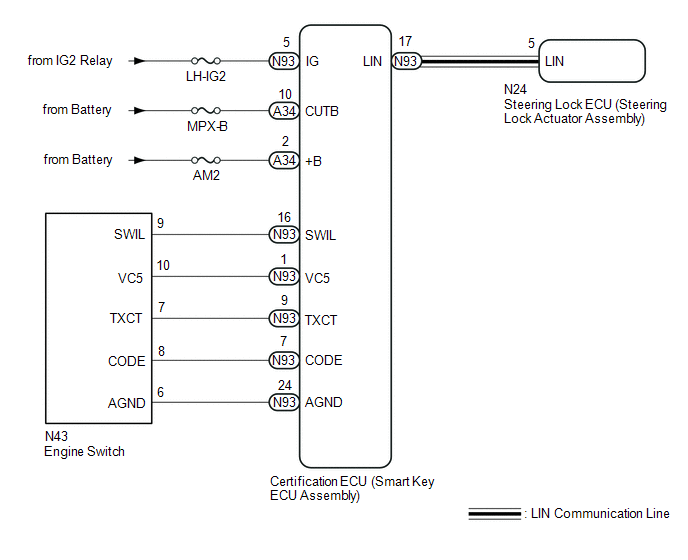

New Key cannot be Registered [09/2014 - 10/2015]: Wiring Diagram

GTY643015

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
