System Diagram [10/2015 - 09/2016]

Power Steering System Circuit Diagram

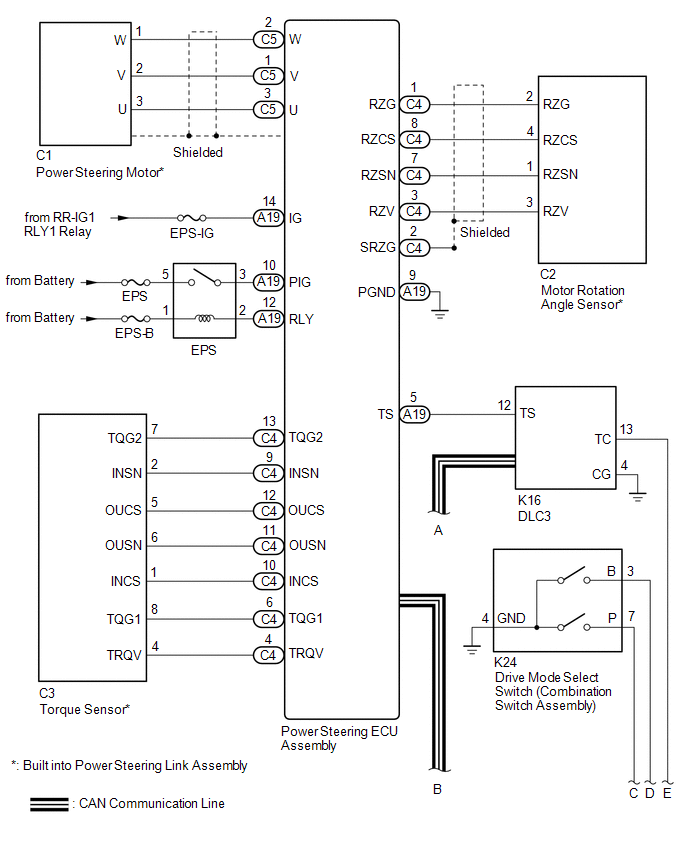

GTY624230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

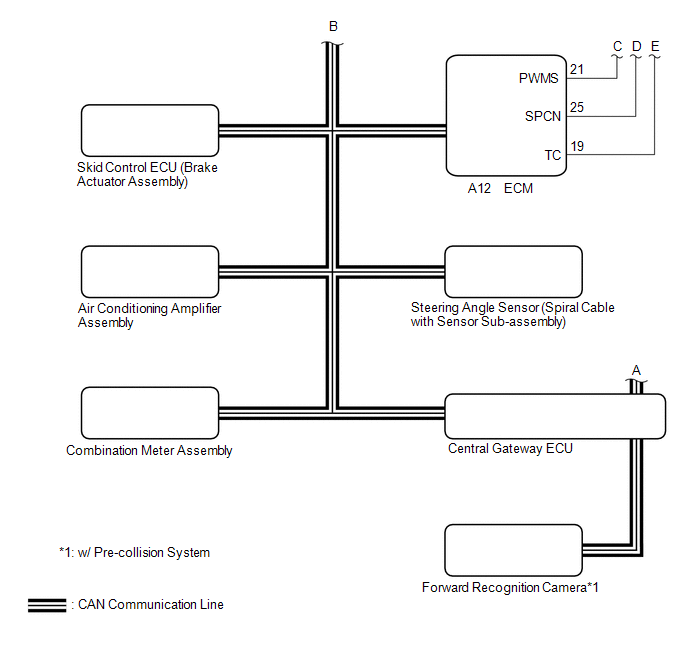

GTY673192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
