LEXUS ENFORM System (Diagnostics - Introduction)
>>
LEXUS ENFORM System
>>
System Diagram [09/2015 - 08/2017]
>>
System Diagram [09/2015 - 08/2017]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram [09/2015 - 08/2017]

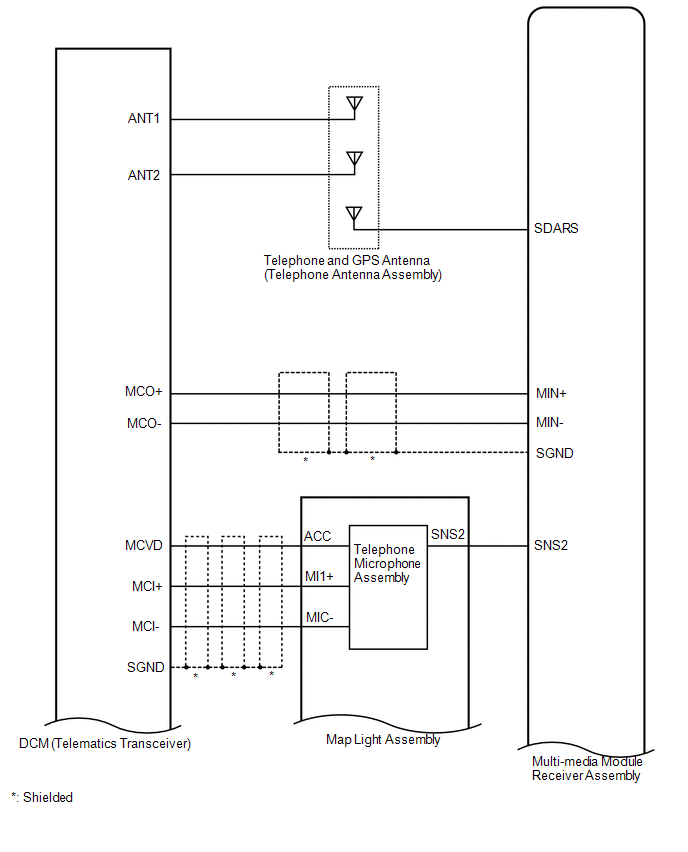

Fig 1: Lexus Enform System Wiring Diagram (1 of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

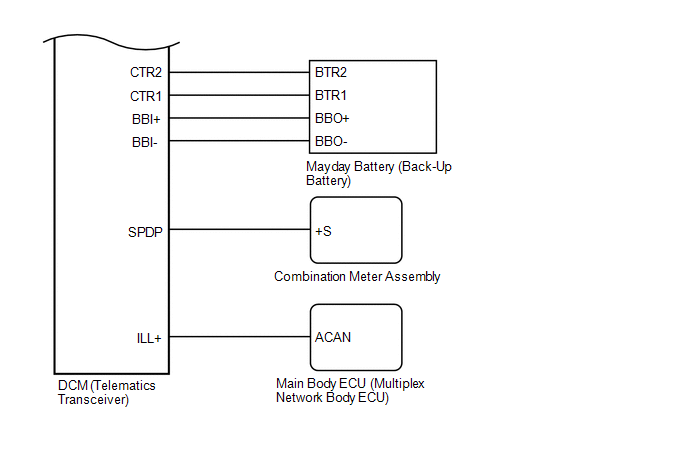

Fig 2: Lexus Enform System Wiring Diagram (2 of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

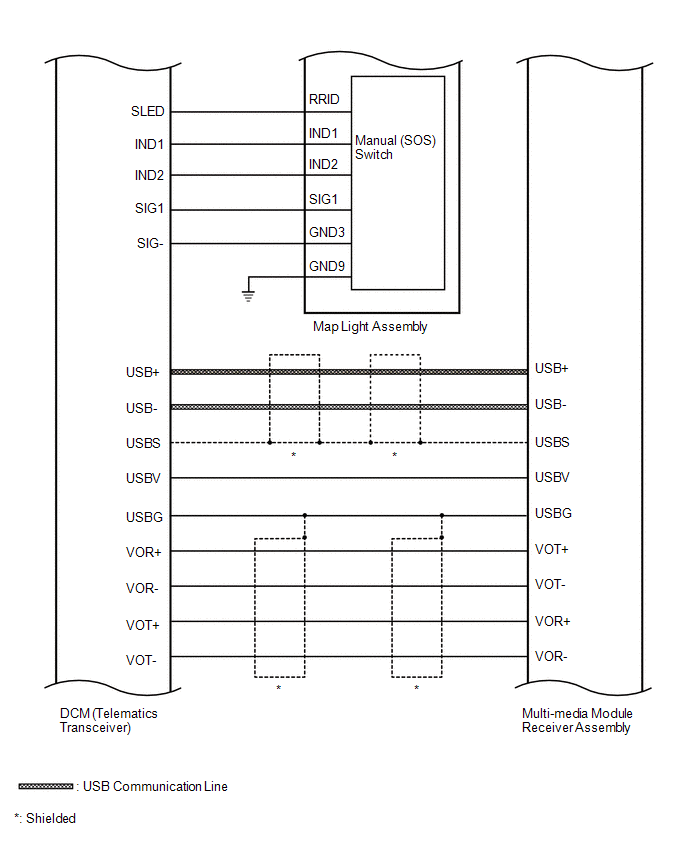

Fig 3: Lexus Enform System Wiring Diagram (3 of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

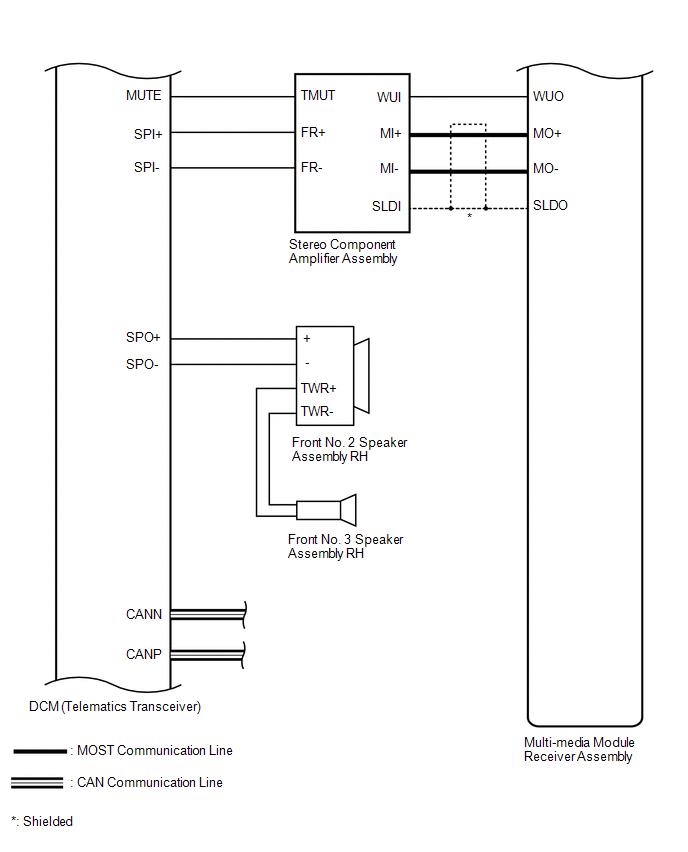

Fig 4: Lexus Enform System Wiring Diagram (4 of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
