Radio Receiver Assembly Communication Stop Mode [09/2017 - 05/2019]: Procedure

1. Disconnect the cable from the negative (-) auxiliary battery terminal.
2. Disconnect the radio receiver assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to Radio Receiver Assembly)

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   I152-13 (CANH) - I152-14 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE CAN BRANCH WIRE OR CONNECTOR

Result:

OK

See step  2

1. Disconnect the radio receiver assembly connector.
2. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

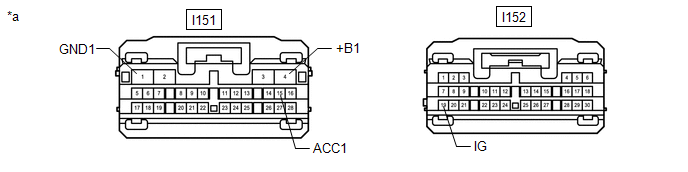

   Front view of wire harness connector (to Radio Receiver Assembly)

   -

   -

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   I151-1 (GND1) - Body ground	Cable disconnected from negative (-) auxiliary battery terminal	Below 1 Ω

3. Reconnect the cable to the negative (-) auxiliary battery terminal.
   NOTE:

   When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

   Refer to INITIALIZATION [09/2017 - 05/2019]

4. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   I151-4 (+B1) - Body ground	Power switch off	11 to 14 V
   I151-15 (ACC1) - Body ground	Power switch on (ACC)	11 to 14 V
   	Power switch off	Below 1 V
   I152-19 (IG) - Body ground	Power switch on (IG)	11 to 14 V
   	Power switch off	Below 1 V

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE RADIO RECEIVER ASSEMBLY. Refer to  REMOVAL [09/2017 - 05/2019]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
