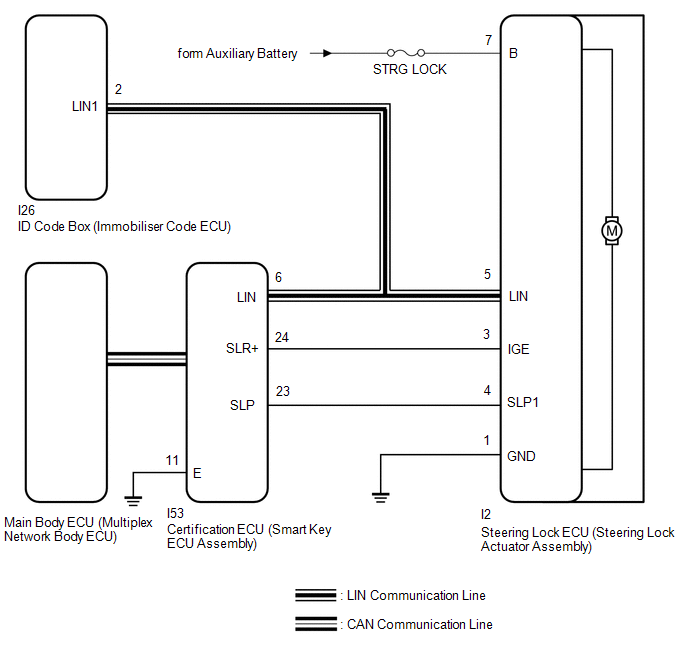

Unable to Unlock Steering Wheel (Hybrid Control System cannot Start) [09/2017 - 05/2019]: Wiring Diagram

GTY499448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
