Data List / Active Test [10/2015 - ]

  1. DATA LIST

    HINT:

    Using the Techstream to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.

    NOTE:

    In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / (desired system) / Data List.
    5. Read the Data List according to the display on the Techstream.

      Body Electrical > Power Source Control > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Shift P Signal Shift position P OFF or ON OFF: Shift lever not in P
      ON: Shift lever in P      		 Use this item to determine whether the shift lever position switch (P) is malfunctioning.
      Steering Unlock Switch State of steering unlock sensor signal output from steering lock ECU (steering lock actuator or upper bracket assembly) OFF or ON OFF: Steering locked
      ON: Steering unlocked
      • When the shift lever is in P and the power switch is off, if any door is opened or closed, the steering is locked.
      • When the electrical key transmitter sub-assembly is in the cabin and the power switch is turned on (ACC) or on (IG), the steering unlocks.
      • The hybrid control system cannot be started when the steering unlock signal is off.
      Stop Light Switch 1 State of brake pedal OFF or ON OFF: Brake pedal released
      ON: Brake pedal depressed
      • Use this item to determine if the stop light switch assembly is malfunctioning.
      • The hybrid control system cannot be started when this item is OFF.
      • If the stop light switch assembly is malfunctioning, the hybrid control system can be started by pressing and holding the power switch for a certain period of time.
      Start Switch 1 Power switch 1 status OFF or ON OFF: Power switch not pressed
      ON: Power switch pressed
      • If the power switch is pressed for a short time, the display may not change.
      • Use this item to determine if the power switch input signal is malfunctioning.
      Start Switch 2 Power switch 2 status OFF or ON OFF: Power switch not pressed
      ON: Power switch pressed
      • Backup for power switch 1. However, when the power switch is pressed and held, the control functions only when both power switch 1 and 2 are normal.
      • Behaves the same way as power switch 1.
      Latch Circuit Status of IG related backup circuits OFF or ON OFF: Power switch off
      ON: Power switch on (IG)
      • Operates in almost the same manner as the IG relay.
      • When the power switch is on (ACC), OFF is displayed.
      Starter Request Signal Hybrid control system start request signal status OFF or ON OFF: The power switch is not pressed
      ON: With the shift lever in P and the brake pedal depressed, the power switch is pressed and held
      • When the hybrid control system cannot be started due to a start request signal malfunction, OFF is displayed.
      • When the power switch is pressed, the duration of time that ON is displayed will be extremely short. As such, the power switch needs to be pressed and held for a certain period of time.
      ACC Relay Monitor ACC relay activation OFF or ON OFF: Power switch off
      ON: Power switch on (ACC)      		 When the power switch is on (IG), ON is displayed.
      Vehicle Speed Signal Vehicle being driven or stopped Stop or Run Stop: Vehicle stopped
      Run: Vehicle being driven at 5 km/h (3 mph) or more      		 -
      Power Supply Condition Power supply state All OFF, ACC ON, IG ON or ST ON All OFF: Power switch off (ACC and IG)
      ACC ON: Power switch on (ACC)
      IG ON: Power switch on (IG)
      ST ON: Sending hybrid control system start request signal      		 -
      Park Signal Mismatch P position signal malfunction No or Yes No: Signal normal
      Yes: Signal malfunction (signals via CAN communication and direct line do not match)      		 Even when Yes is displayed, it is still possible to turn the power switch off (the power source mode will not be stuck in on (ACC) or on (IG)).
      Str Lock/Unlock Wait T-Out Steering lock or unlock malfunction No or Yes No: Lock and unlock normal
      Yes: Lock or unlock malfunction (e.g. steering lock is stuck etc.)      		 When the hybrid control system cannot be started due to a steering lock or unlock malfunction, Yes is displayed.
      Key Certif Wait T-Out Key verification malfunction No or Yes No: Verification normal
      Yes: Verification error (Detected due to the electrical key transmitter sub-assembly ID code and the ID code stored in the certification ECU (smart key ECU assembly) not matching)      		 When the hybrid control system cannot be started due to a key verification error, Yes is displayed.
      IG Circuit IG relay coil circuit malfunction OK or NG OK: Circuit normal
      NG: Circuit malfunctioning
      • Use this item to determine if the IG relay is malfunctioning.
      • When the hybrid control system cannot be started due to an IG relay malfunction, NG is displayed.
      IG Relay Monitor (Outside) IG relay coil voltage monitor status OFF or ON OFF: Power switch off
      ON: Power switch on (IG)
      • Use this item to determine if the IG relay is malfunctioning.
      • When the power switch is on (ACC), OFF is displayed.
      IG Relay Monitor (Inside) IG relay activation OFF or ON OFF: Power switch off
      ON: Power switch on (IG)
      • Use this item to determine if the IG relay is malfunctioning.
      • When the power switch is on (ACC), OFF is displayed.
      Number of Diagnosis Code Number of DTCs 0 to 255 - -
      GTY515857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      To check if the Data List display changes, get into the vehicle while carrying an electrical key transmitter sub-assembly and perform the following operations with the power switch off and the shift lever in P.

      *1: Press the power switch with the brake pedal released and check that the power switch turns on (ACC).

      *2: Press the power switch with the brake pedal released and check that the power switch turns on (IG).

      *3: Depress the brake pedal (stop light switch assembly is on).

      *4: Press the power switch with the brake pedal depressed and check that the hybrid control system starts.

      *5: Press the power switch with the brake pedal depressed and check that the power switch turns off.

      *6: Release the brake pedal.

      *7: Open a door.

      Body Electrical > Smart Access > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Key Low Battery Transmitter battery depleted No or Yes No: Transmitter battery not depleted
      Yes: Transmitter battery depleted      		 The electrical key transmitter sub-assembly sends voltage information to the certification ECU (smart key ECU assembly) when it is transmitting. "Yes" is displayed for the Data List item "Key Low Battery" when this voltage information indicates 2.2 V or less. This Data List item should be checked when the electrical key transmitter sub-assembly is at room temperature (example: at -20°C (-4°F), "Yes" may be displayed even if the transmitter battery is new).
      # Codes Number of DTCs 0 to 255 - -
      Immobilizer Immobilizer system status determined by certification ECU (smart key ECU assembly) Set or Unset Set: Immobilizer set (hybrid control system start prohibited) (power switch off)
      Unset: Immobilizer unset (hybrid control system start permitted) (power switch on (ACC) or on (IG))      		 The hybrid control system cannot be started when Set is displayed.
      HINT:
      • The security indicator light blinks when Set is displayed.
      • The security indicator light is linked with set/unset of the Immobilizer and not linked with lock/unlock of the steering.
      Steering Lock Sleep Cond Steering lock ECU sleep availability No or Yes No: Sleep not available
      Yes: Sleep available      		 -
      Steering Lock Start Cond Steering lock ECU wake up signal status No or Yes No: Wake up signal not sent
      Yes: Wake up signal sent      		 -
      Engine Start Condition Status of hybrid control system start permission signal determined by steering lock ECU (steering lock actuator or upper bracket assembly) and sent to certification ECU (smart key ECU assembly) NG or OK NG: Hybrid control system start prohibited
      OK: Hybrid control system start permitted
      • When OK is displayed, the certification ECU (smart key ECU assembly) receives an unlock confirmation signal from the steering lock ECU (steering lock actuator or upper bracket assembly) and makes hybrid control system starting possible.
      • The hybrid control system cannot be started when NG is displayed.
      Sensor Value History of malfunction of position sensor in steering lock ECU (steering lock actuator or upper bracket assembly) (DTC B2781 is stored) OK or NG(Past) OK: History of malfunction for the lock or unlock sensor in the steering lock ECU (steering lock actuator or upper bracket assembly) does not exist.
      NG(Past): History of both the lock and unlock sensors in the steering lock ECU (steering lock actuator or upper bracket assembly) being on exists. (Under normal operation, neither sensor is on.)      		 When NG(Past) is displayed, either the position sensor in the steering lock ECU (steering lock actuator or upper bracket assembly) or the assembly itself may be malfunctioning.
      Power Supply Short History of signal error (short) sent from certification ECU (smart key ECU assembly) to steering lock ECU (steering lock actuator or upper bracket assembly) (DTC B2782 is stored) OK or NG(Past) OK: History of motor power source short does not exist
      NG(Past): History of motor power source short exists      		 This item displays history of a malfunction in the circuit between the certification ECU (smart key ECU assembly) and the steering lock ECU (steering lock actuator or upper bracket assembly).
      Motor Driver Short History of malfunction (short) in steering lock ECU (steering lock actuator or upper bracket assembly) motor circuit (DTC B2781 is stored) OK or NG(Past) OK: History of short in the motor circuit does not exist
      NG(Past): History of short in the motor circuit exists      		 This item displays history of a malfunction in the steering lock motor circuit in the steering lock ECU (steering lock actuator or upper bracket assembly).
      Lock/Unlock Receive History of receiving an unlock request signal No or Yes No: History of receiving an unlock request signal does not exist
      Yes: History of receiving an unlock request signal exists      		 -
      Lock Bar Stuck Error History of steering not being able to unlock properly when steering lock operates for a certain period of time OK or NG(Past) OK: History of steering lock being stuck does not exist
      NG(Past): History of steering lock being stuck exists      		 -
      Engine Start Request Immobilizer unset (hybrid control system start permitted) signal from certification ECU (smart key ECU assembly) to ID code box (Immobilizer code ECU) received state OK or NG OK: Signal received
      NG: Signal not received
      • The ID code box (Immobilizer code ECU) receives the Immobilizer unset (hybrid control system start permitted) signal from the certification ECU (smart key ECU assembly) and permits fuel injection and ignition when OK is displayed.
      • The hybrid control system cannot be started when NG is displayed.
      S Code Check Verification result between certification ECU (smart key ECU assembly) and ID code box (Immobilizer code ECU) OK or NG OK: Verification result normal
      NG: Verification result abnormal      		 When NG is displayed:
      • The ID code for the certification ECU (smart key ECU assembly) or ID code box (Immobilizer code ECU) is not registered, or the certification ECU (smart key ECU assembly) or ID code box (Immobilizer code ECU) is malfunctioning.
      • The steering cannot be locked.
      • The steering cannot be unlocked (the hybrid control system cannot be started).
      L Code Check Verification result between ID code box (Immobilizer code ECU) and steering lock ECU (steering lock actuator or upper bracket assembly) OK or NG OK: Verification result normal
      NG: Verification result abnormal      		 When NG is displayed:
      • The ID code for the ID code box (Immobilizer code ECU) or steering lock ECU (steering lock actuator or upper bracket assembly) is not registered, or the ID code box (Immobilizer code ECU) or steering lock ECU (steering lock actuator or upper bracket assembly) is malfunctioning.
      • The steering cannot be locked.
      • The steering cannot be unlocked (the hybrid control system cannot be started).
      Unlock Request Receive Unlock request signal received state OK or NG OK: Unlock request signal received within 10 seconds of power switch being turned on (IG) or on (ACC) or of an hybrid control system start operation being performed
      NG: Power switch not turned on (IG) or on (ACC) and hybrid control system start operation not being performed
      • The hybrid control system cannot be started when an unlock request signal cannot be received.
      • If OK is not displayed even though the steering unlock conditions are met, the certification ECU (smart key ECU assembly) may be malfunctioning.
      Lock Request Receive Lock request signal received state OK or NG OK: Lock request signal received within 10 seconds of any of the doors being opened with shift lever in P and power switch off.
      NG: Except above      		 If OK is not displayed even though the steering lock conditions are met, the certification ECU (smart key ECU assembly) may be malfunctioning.
      S Code Check(Past) Verification result history between the certification ECU (smart key ECU assembly) and ID code box (Immobilizer code ECU) OK or NG(Past) OK: History of abnormal verification result does not exist
      NG(Past): History of abnormal verification result exists      		 -
      L Code Check(Past) Verification result history between the ID code box (Immobilizer code ECU) and steering lock ECU (steering lock actuator or upper bracket assembly) OK or NG(Past) OK: History of abnormal verification result does not exist
      NG(Past): History of abnormal verification result exists      		 -
      Steering Lock Steering lock ECU (steering lock actuator or upper bracket assembly) lock confirmation status Unset or Set Unset: Lock not confirmed
      Set: Lock confirmed      		 When Unset is displayed, the steering is not locked.
      Steering Unlock Steering lock ECU (steering lock actuator or upper bracket assembly) unlock confirmation status Unset or Set Unset: Unlock not confirmed
      Set: Unlock confirmed      		 When Unset is displayed, the steering is not unlocked (the hybrid control system cannot be started).
      Engine Start Indicator Key indicator display OFF or ON Customize setting displayed -
      Open in IG2 History of IG2 input of the steering lock ECU (steering lock actuator or upper bracket assembly) OK or NG(Past) OK: History of open in IG2 terminal circuit exists
      NG(Past): No history of open in IG2 terminal circuit exists      		 When OK is displayed, the steering lock ECU (steering lock actuator or upper bracket assembly) has an IG2 input circuit malfunction.

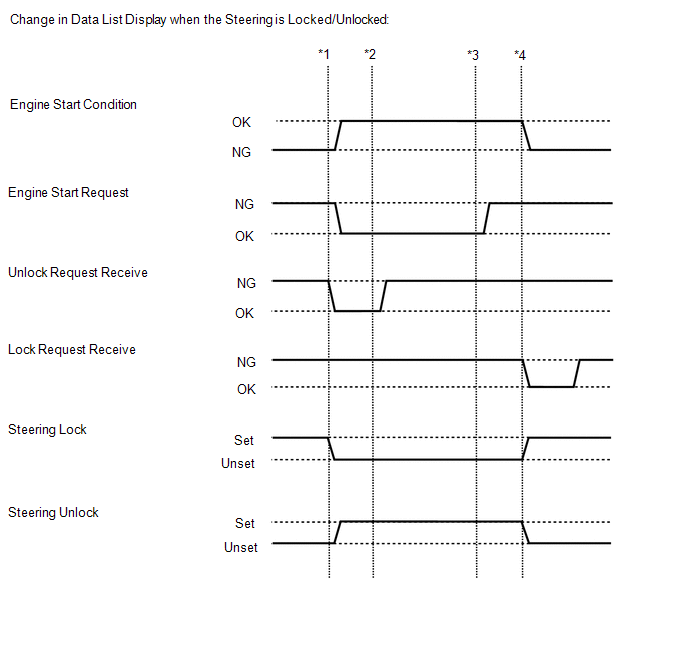

      GTY658390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      To check if the Data List display changes, get into the vehicle while carrying an electrical key transmitter sub-assembly and perform the following operations with the power switch off and the shift lever in P.

      *1: Press the power switch with the brake pedal released and check that the power switch turns on (ACC).

      *2: Press the power switch with the brake pedal released and check that the power switch turns on (IG).

      *3: Press the power switch and check that the power switch turns off.

      *4: Release the brake pedal, open the driver side door and check that the steering locks.

      Body Electrical > Combination Meter > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Vehicle Speed Meter Vehicle speed Min.: 0, Max.: 255 Almost same as actual vehicle speed (Speedometer tester) -

      Powertrain > Hybrid Control > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Stop Light Switch Brake pedal signal OFF or ON OFF: Brake pedal released
      ON: Brake pedal depressed      		 -
  2. ACTIVE TEST

    HINT:

    Using the Techstream to perform Active Tests allows relays, VSVs, actuators and other items to be operated without removing any parts. This non-intrusive functional inspection can be very useful because intermittent operation may be discovered before parts or wiring is disturbed. Performing Active Tests early in troubleshooting is one way to save diagnostic time. Data List information can be displayed while performing Active Tests.

    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / (desired system) / Active Test.
    5. Perform Active Test according to the display on the Techstream.

      Body Electrical > Power Source Control > Active Test

      Tester Display Measurement Item Control Range Diagnostic Note
      P Supply for Steering Lock Certification ECU (smart key ECU assembly) OFF/ON
      HINT:
      OFF: Power is not supplied.
      ON: Power is supplied.      		 When performing this Active Test, make sure the following condition is met:

      Body Electrical > Smart Access > Active Test

      Tester Display Measurement Item Control Range Diagnostic Note
      Power/Engine SW Light Power switch light OFF/ON When performing this Active Test, make sure the following conditions are met:
      The power switch illumination is off (15 seconds or more have elapsed since it turned off) and the power switch is on (ACC) or on (IG), or the hybrid control system is started.
