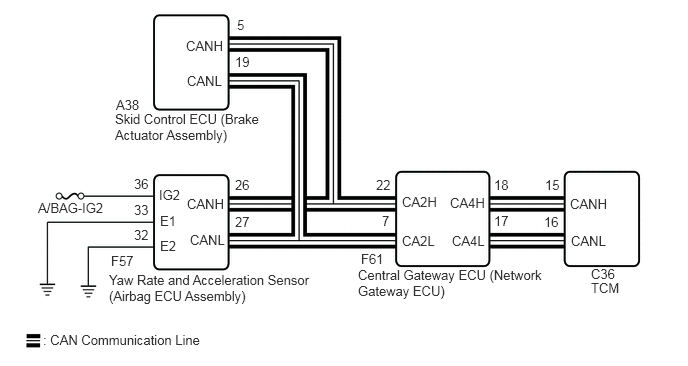

DTC P1585-04: Acceleration Sensor Circuit System Internal Failure [10/2018 - 07/2022]: Wiring Diagram

GTY796347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
