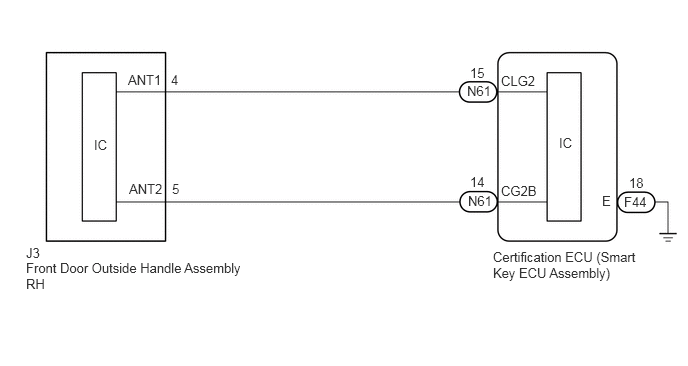

Front Passenger Side Door Entry Unlock Function does not Operate [10/2018 - ]: Wiring Diagram

GTY783908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
