DTC P3123-87: Lost Communication with Drive Motor Control Module "A" from Hybrid/EV Control Module Missing Message [10/2018 - ]: Procedure

  1. INSPECT FUSE (PCU FR)
    1. Remove the PCU FR fuse from the No. 3 relay block.
    2. Measure the resistance according to the value(s) in the table below.
      GTY808724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 3 Relay Block
      *2 PCU FR Fuse

      Standard Resistance

      Tester Connection Condition Specified Condition
      PCU FR fuse terminals Always Below 1 Ω
    3. Install the PCU FR fuse.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  9

    Result:

    OK

    See step  2

  2. CLEAR DTC

    Refer to PROCEDURE - Step 3

    Result

    Proceed to
    NEXT

    Result:

    NEXT

    See step  3

  3. CHECK DIAGNOSIS RELATED INFORMATION AND DTC OUTPUT (HYBRID CONTROL)
    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG) and wait for 2 minutes or more.
    3. Enter the following menus: Powertrain / Hybrid Control / Utility / Diagnosis Related Information.

      Powertrain > Hybrid Control > Utility

      Tester Display
      Diagnosis Related Information
    4. Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.

      Powertrain > Hybrid Control > Trouble Codes

    5. Check for DTCs.

      Result

      Result  Proceed to
      P312387 is listed in Diagnosis Related Information or DTC P312387 is output. A
      P312387 is not listed in Diagnosis Information and DTC P312387 is not output. B
    6. Turn the power switch off.

    Result:

    B

    CHECK FOR INTERMITTENT PROBLEMS. Refer to  CHECK FOR INTERMITTENT PROBLEMS [10/2018 - ]

    Result:

    A

    See step  4

  4. CHECK CONNECTOR CONNECTION CONDITION (HYBRID VEHICLE CONTROL ECU CONNECTOR)
    1. Check the connector connections and contact pressure of the relevant terminals for the hybrid vehicle control ECU connectors.

      HINT:

      Refer to ELECTRONIC CIRCUIT INSPECTION PROCEDURE [10/2018 - ]

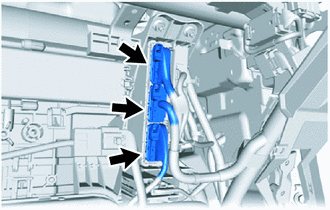

      GTY779462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK

      The connectors are connected securely and there are no contact pressure problems.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    CONNECT SECURELY

    Result:

    OK

    See step  5

  5. CHECK CONNECTOR CONNECTION CONDITION (INVERTER WITH CONVERTER ASSEMBLY CONNECTOR)
    WARNING:

    Be sure to wear insulated gloves.

    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the appropriate service information because this may cause a malfunction.

    2. Check the connection condition of the low voltage connectors of the inverter with converter assembly and the contact pressure of each terminal. Check the terminals for deformation, and the connector for water and foreign matter.

      HINT:

      Refer to ELECTRONIC CIRCUIT INSPECTION PROCEDURE [10/2018 - ]

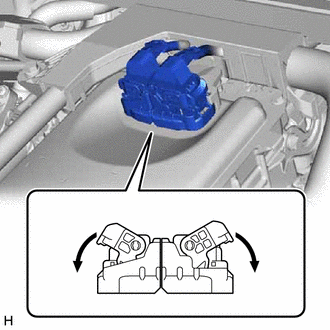

      GTY542682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Before disconnecting the connector, confirm that it is properly connected by checking that the claws of the lock levers are engaged and that the connector cannot be pulled off.

      OK

      - The connector is connected securely.

      - The terminals are not deformed and are connected securely.

      - No water or foreign matter in the connector.

      HINT:

      When connecting the connector, connect it with the lock levers raised. Rotate each lock lever downward and make sure that the connector is securely connected. When a lock lever is fully lowered, a click will be heard as its claw engages. After the click is heard, pull up on the connector to confirm that it is securely connected.

      Result

      Result Proceed to
      OK A
      NG (The connector is not connected securely.) B
      NG (The terminals are not making secure contact or are deformed, or water or foreign matter exists in the connector.) C

    Result:

    B

    CONNECT SECURELY

    Result:

    C

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    A

    See step  6

  6. CHECK HARNESS AND CONNECTOR (INVERTER WITH CONVERTER ASSEMBLY POWER SOURCE CIRCUIT)
    WARNING:

    Be sure to wear insulated gloves.

    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the appropriate service information because this may cause a malfunction.

    2. Disconnect the C41 inverter with converter assembly connector.

      Refer to PROCEDURE - Step 11 [10/2018 - 07/2022] Refer to PROCEDURE - Step 11 [07/2022 - ]

    3. Measure the resistance according to the value(s) in the table below.
      GTY830306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Inverter with Converter Assembly)

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      C41-24 (GND1) - Body ground Power switch off Below 1 Ω
      C41-23 (GND2) - Body ground Power switch off Below 1 Ω
    4. Connect the cable to the negative (-) auxiliary battery terminal.
    5. Turn the power switch on (IG).
    6. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      C41-6 (+B) - Body ground Power switch on (IG) 11 to 14 V
      C41-5 (+B2) - Body ground Power switch on (IG) 11 to 14 V
      NOTE:

      Turning the power switch on (IG) with the inverter with converter assembly disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.

    7. Turn the power switch off.
    8. Disconnect the cable from the negative (-) auxiliary battery terminal and wait for 2 minutes or more.
    9. Reconnect the C41 inverter with converter assembly connector.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  7

  7. CHECK HARNESS AND CONNECTOR (INVERTER WITH CONVERTER ASSEMBLY - HYBRID VEHICLE CONTROL ECU)
    WARNING:

    Be sure to wear insulated gloves.

    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the appropriate service information because this may cause a malfunction.

    2. Disconnect the C41 inverter with converter assembly connector.
    3. Disconnect the A46 hybrid vehicle control ECU connector.
    4. Connect the cable to the negative (-) auxiliary battery terminal.
    5. Turn the power switch on (IG).
    6. Measure the voltage according to the value(s) in the table below.

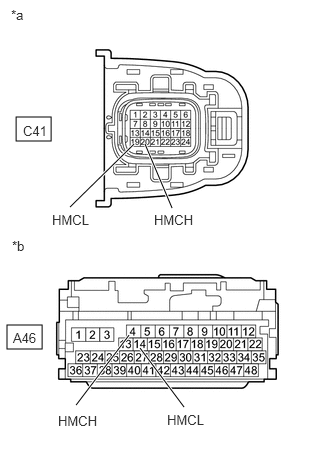

      GTY790755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Inverter with Converter Assembly)
      *b Front view of wire harness connector
      (to Hybrid Vehicle Control ECU)

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      A46-14 (HMCL) - Body ground Power switch on (IG) Below 1 V
      A46-4 (HMCH) - Body ground Power switch on (IG) Below 1 V
      NOTE:

      Turning the power switch on (IG) with the hybrid vehicle control ECU connector and the inverter with converter assembly disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.

    7. Turn the power switch off.
    8. Disconnect the cable from the negative (-) auxiliary battery terminal and wait for 2 minutes or more.
    9. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for Open)

      Tester Connection Switch Condition Specified Condition
      C41-19 (HMCL) - A46-14 (HMCL) Power switch off Below 1 Ω
      C41-20 (HMCH) - A46-4 (HMCH) Power switch off Below 1 Ω

      Standard Resistance (Check for Short)

      Tester Connection Switch Condition Specified Condition
      C41-19 (HMCL) or A46-14 (HMCL) - Body ground and other terminals Power switch off 10 kΩ or higher
      C41-20 (HMCH) or A46-4 (HMCH) - Body ground and other terminals Power switch off 10 kΩ or higher

      HINT:

      As there might be an intermittent malfunction, inspect the following items even if the measured resistance is as specified.

      Check that each connector between the inverter with converter assembly and hybrid vehicle control ECU is not loose or disconnected.

    10. Reconnect the A46 hybrid vehicle control ECU connector.
    11. Reconnect the C41 inverter with converter assembly connector.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  8

  8. CHECK HYBRID VEHICLE CONTROL ECU
    WARNING:

    Be sure to wear insulated gloves.

    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the appropriate service information because this may cause a malfunction.

    2. Disconnect the C41 inverter with converter assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

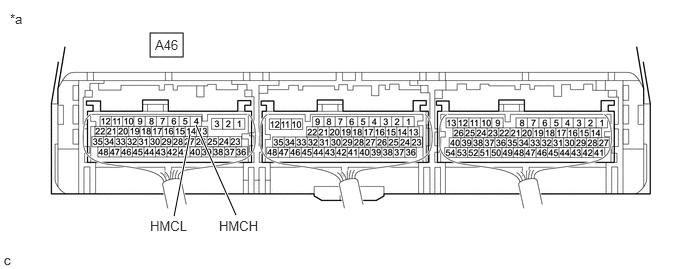

      GTY780608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Hybrid Vehicle Control ECU)      		 - -

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      A46-14 (HMCL) - A46-4 (HMCH) Power switch off 110 to 130 Ω
    4. Reconnect the C41 inverter with converter assembly connector.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE INVERTER WITH CONVERTER ASSEMBLY. Refer to  REMOVAL [10/2018 - 07/2022]  Refer to  REMOVAL [07/2022 - ]

    Result:

    NG

    REPLACE HYBRID VEHICLE CONTROL ECU. Refer to  REMOVAL [10/2018 - 07/2022]  Refer to  REMOVAL [07/2022 - ]

  9. REPLACE FUSE (PCU FR)
    1. Replace the PCU FR fuse.
      GTY808724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 3 Relay Block
      *2 PCU FR Fuse
    2. Turn the power switch on (READY).
    3. Check if there is an open circuit in the PCU FR fuse in the No. 3 relay block.

      OK

      There is no open circuit in the PCU FR fuse.

      HINT:

      If the fuse does not become open again after turning the power switch on (READY), it can be assumed that the previous fuse failed due to age.

    4. Turn the power switch off.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    COMPLETED

    Result:

    NG

    See step  10

  10. CHECK HARNESS AND CONNECTOR (INVERTER WITH CONVERTER ASSEMBLY - PCU FR FUSE)
    WARNING:

    Be sure to wear insulated gloves.

    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the appropriate service information because this may cause a malfunction.

    2. Remove the PCU FR fuse from the No. 3 relay block.
    3. Disconnect the C41 inverter with converter assembly connector.
    4. Measure the resistance according to the value(s) in the table below.

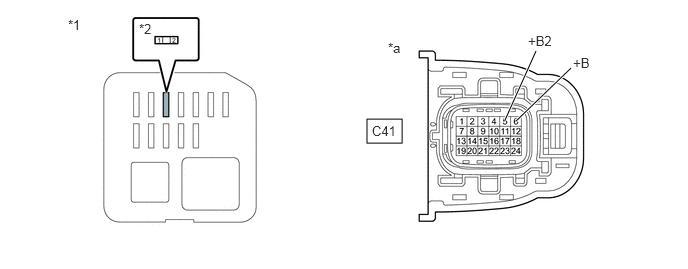

      GTY775471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 3 Relay Block *2 PCU FR Fuse Holder
      *a Front view of wire harness connector
      (to Inverter with Converter Assembly)      		 - -

      Standard Resistance (Check for Short)

      Tester Connection Switch Condition Specified Condition
      C41-6 (+B), C41-5 (+B2) or 2 (PCU FR fuse holder) - Body ground and other terminals Power switch off 10 kΩ or higher
    5. Reconnect the C41 inverter with converter assembly connector.
    6. Install the PCU FR fuse.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  12

    Result:

    OK

    See step  11

  11. REPLACE INVERTER WITH CONVERTER ASSEMBLY

    Refer to REMOVAL [10/2018 - 07/2022] Refer to REMOVAL [07/2022 - ]

    Result

    Proceed to
    NEXT

    Result:

    NEXT

    REPLACE FUSE (PCU FR)

  12. REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result

    Proceed to
    NEXT

    Result:

    NEXT

    REPLACE FUSE (PCU FR)
