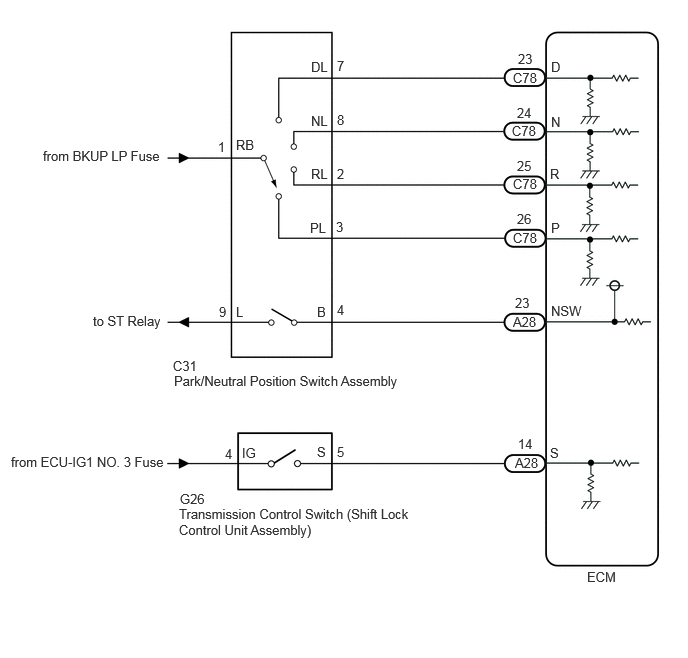

DTC P0705-13: Transmission Range Sensor "A" Circuit Open; DTC P0705-62: Transmission Range Sensor "A" Signal Compare Failure [08/2020 - 08/2021]: Wiring Diagram

GTY947838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
