Components [06/2018 - ]

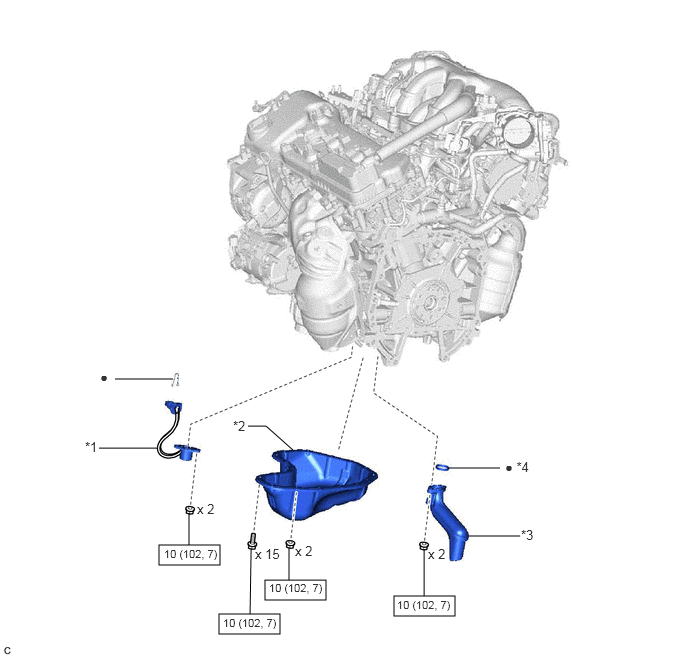

Fig 1: Oil Level Sensor Replacement Components With Torque Specifications
GTY767995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ENGINE OIL LEVEL SENSOR *2 NO. 2 OIL PAN SUB-ASSEMBLY
*3 OIL STRAINER SUB-ASSEMBLY *4 OIL STRAINER GASKET
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
