Components [08/2021 - ]

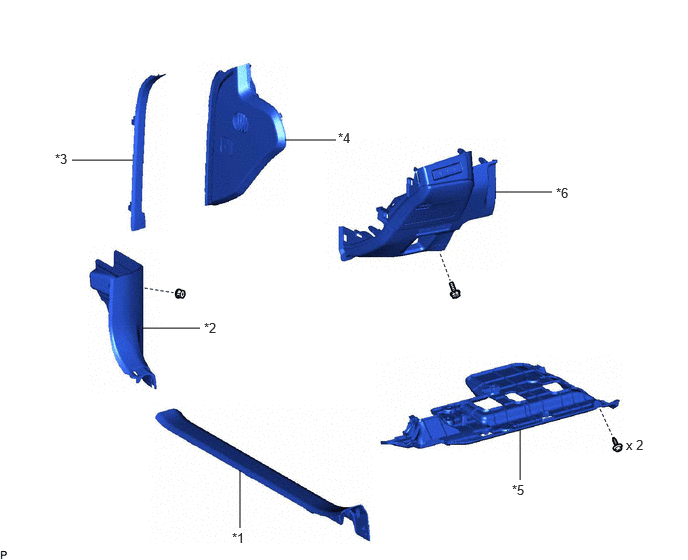

Fig 1: Engine Switch Replacement Components [08/2021 - ] (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT DOOR SCUFF PLATE LH	*2	COWL SIDE TRIM BOARD LH
*3	FRONT DOOR OPENING TRIM COVER LH	*4	INSTRUMENT SIDE PANEL LH
*5	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	*6	LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

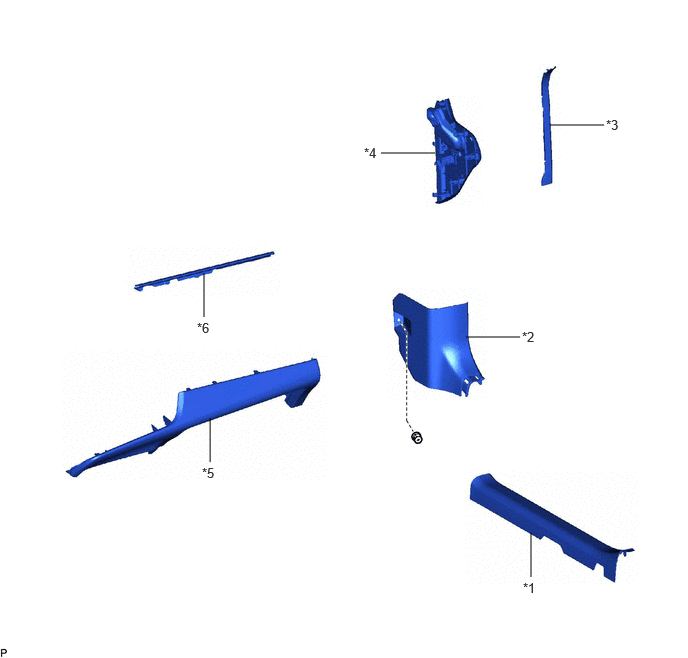

Fig 2: Engine Switch Replacement Components [08/2021 - ] (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT DOOR SCUFF PLATE RH	*2	COWL SIDE TRIM BOARD RH
*3	FRONT DOOR OPENING TRIM COVER RH	*4	INSTRUMENT SIDE PANEL RH
*5	LOWER INSTRUMENT PANEL SUB-ASSEMBLY	*6	NO. 2 INSTRUMENT CLUSTER MOULDING

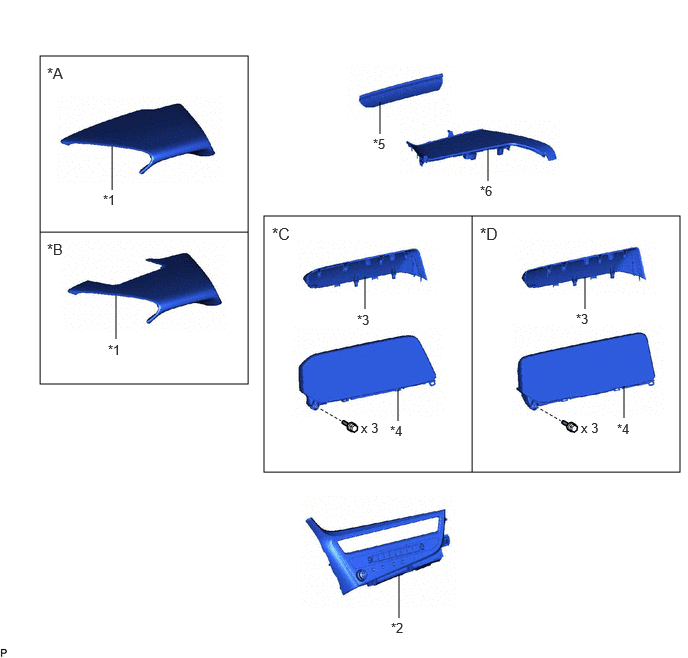

Fig 3: Engine Switch Replacement Components [08/2021 - ] (3 Of 4)

*A	w/o Headup Display	*B	w/ Headup Display
*C	for 8 Inch Display	*D	for 12.3 Inch Display
*1	INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY	*2	AIR CONDITIONING CONTROL ASSEMBLY
*3	INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY	*4	MULTI-DISPLAY ASSEMBLY WITH CLOCK
*5	NO. 3 INSTRUMENT CLUSTER FINISH PANEL GARNISH	*6	UPPER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

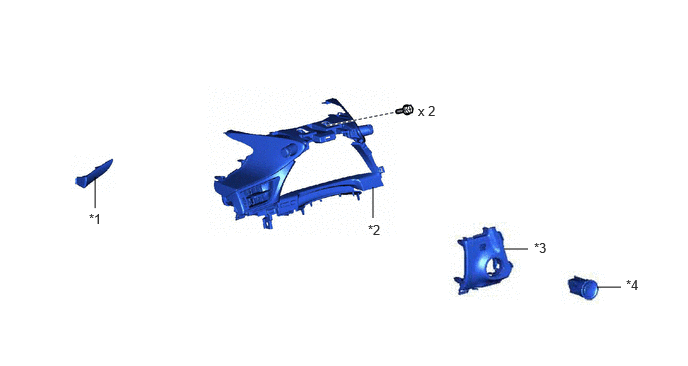

Fig 4: Engine Switch Replacement Components [08/2021 - ] (4 Of 4)

*1	NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH	*2	INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
*3	SWITCH BASE	*4	ENGINE SWITCH
