System Diagram [08/2015 - 08/2018]

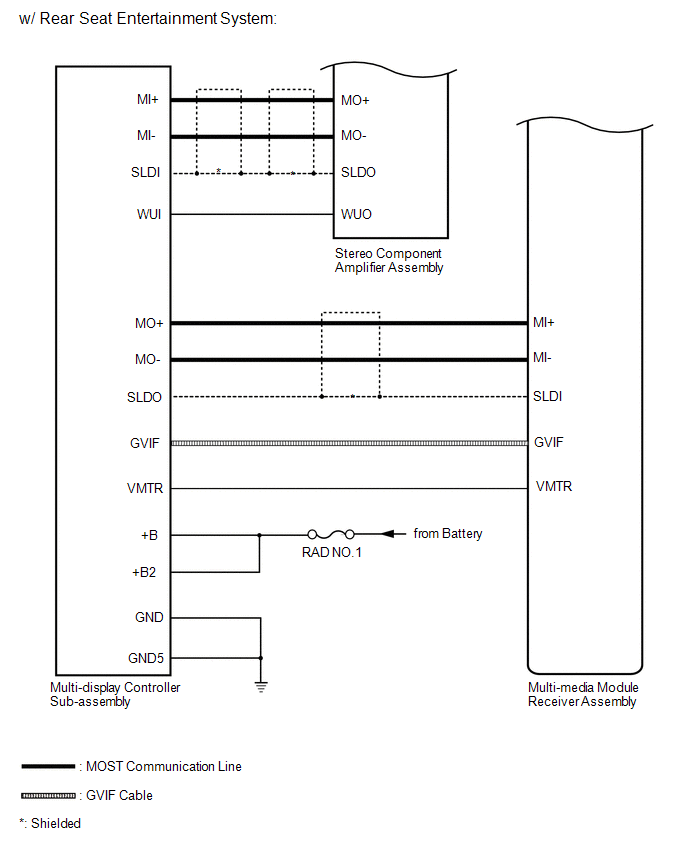

Fig 1: Audio And Visual System (W/ Navigation System) Wiring Diagram (1 Of 11) [08/2015 - 08/2018]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

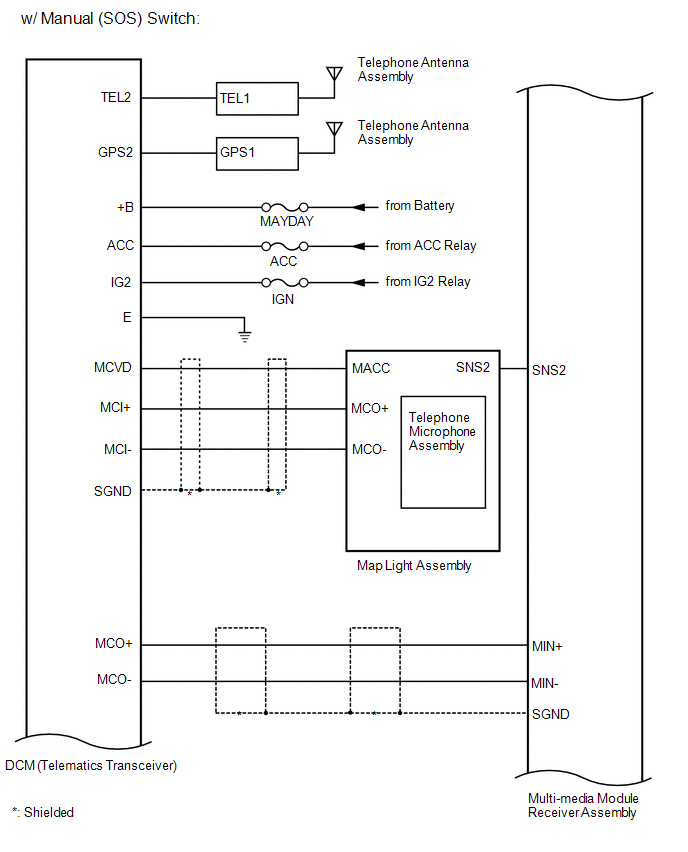

Fig 2: Audio And Visual System (W/ Navigation System) Wiring Diagram (2 Of 11) [08/2015 - 08/2018]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

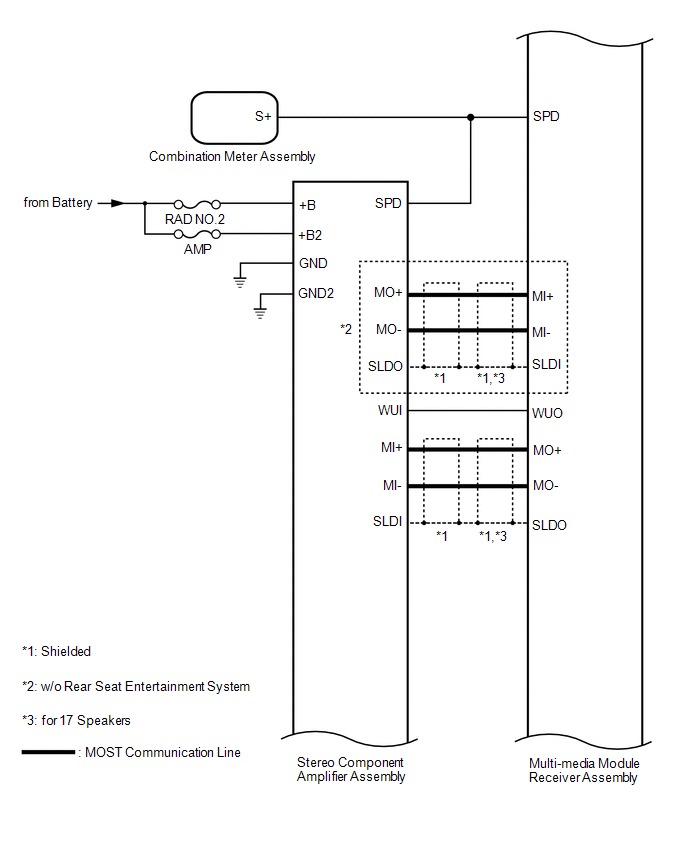

Fig 3: Audio And Visual System (W/ Navigation System) Diagram (3 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

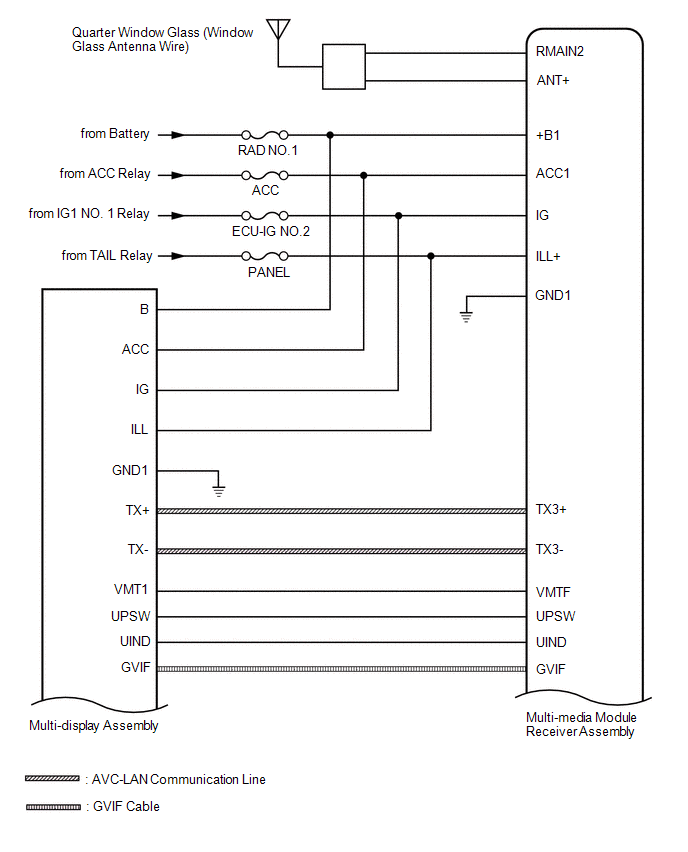

Fig 4: Audio And Visual System (W/O Navigation System) Wiring Diagram (4 Of 11) [08/2015 - 08/2018]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

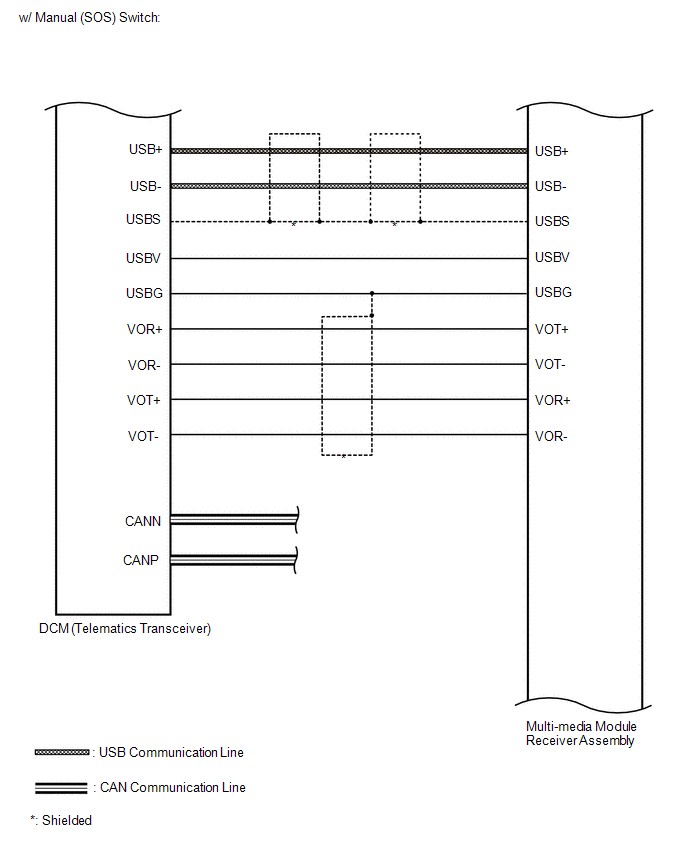

Fig 5: Audio And Visual System (W/ Navigation System) Wiring Diagram (5 Of 11) [08/2015 - 08/2018]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

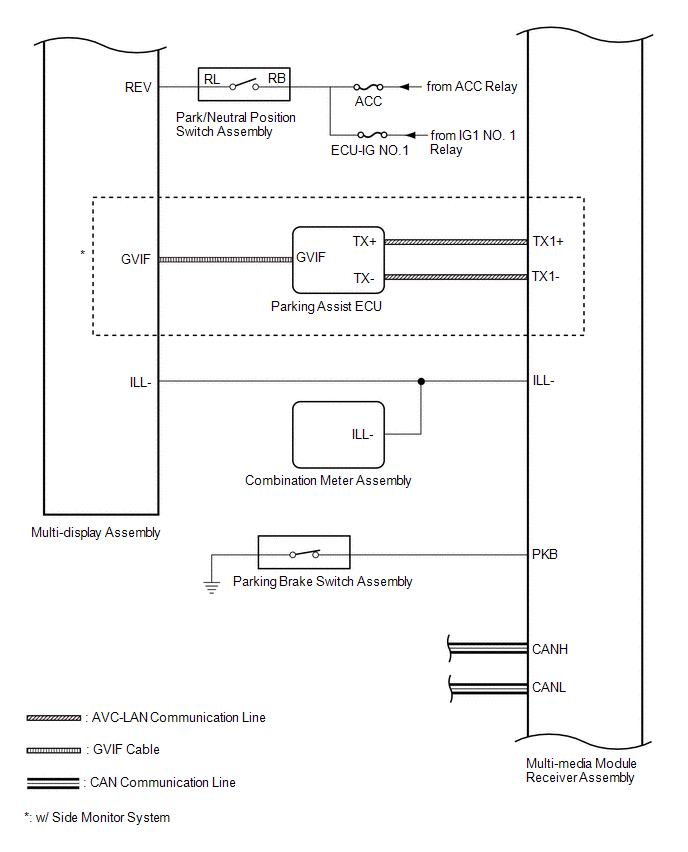

Fig 6: Audio And Visual System (W/ Navigation System) Wiring Diagram (6 Of 11) [08/2015 - 08/2018]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

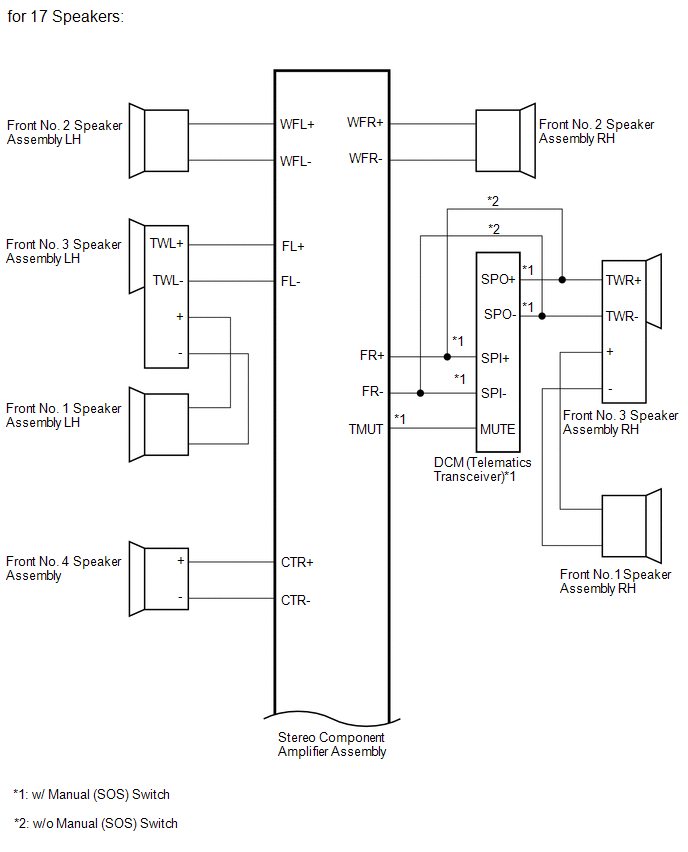

Fig 7: Audio And Visual System (W/ Navigation System) Wiring Diagram (7 Of 11) [08/2015 - 08/2018]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Audio And Visual System (W/ Navigation System) Wiring Diagram (8 Of 11) [08/2015 - 08/2018]

Fig 9: Audio And Visual System (W/ Navigation System) Wiring Diagram (9 Of 11) [08/2019 - 08/2021]

Fig 10: Audio And Visual System (W/ Navigation System) Wiring Diagram (10 Of 11) [08/2015 - 08/2018]

Fig 11: Audio And Visual System (W/ Navigation System) Wiring Diagram (11 Of 11) [08/2019 - 08/2021]
