Parts Location [04/2013 - 10/2016]: Illustration
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2020 Lexus IS 350, 2020 Lexus IS 300, 2019 Lexus IS 350, 2019 Lexus IS 300, and 2018 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

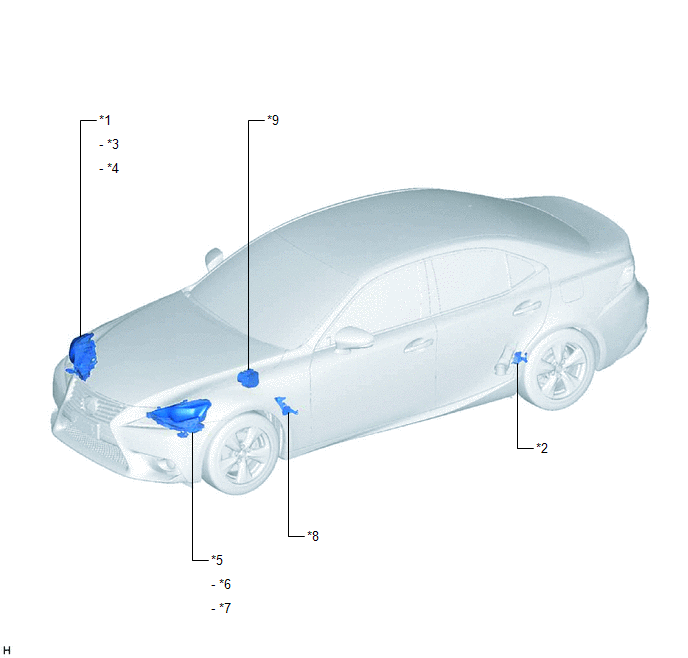

Fig 1: Automatic Headlight Beam Level Control System Components Location (1 Of 2) [04/2013 - 10/2016]
| *1 | HEADLIGHT ASSEMBLY RH | *2 | REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY |
| *3 | HEADLIGHT LEVELING MOTOR RH | *4 | HEADLIGHT CORD RH |
| *5 | HEADLIGHT ASSEMBLY LH | *6 | HEADLIGHT LEVELING MOTOR LH |
| *7 | HEADLIGHT CORD LH | *8 | HEADLIGHT LEVELING ECU ASSEMBLY |
| *9 | BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU) | - | - |
