DTC P0605-96: Control Module Performance Bank 2 Component Internal Failure; DTC P0607-96: Control Module Performance Bank 1 Component Internal Failure [10/2017 - ]: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine / Trouble Codes.
5. Read the DTCs.

   Powertrain > Engine > Trouble Codes

   Result

   Result	Proceed to
   DTC P0605-96 or P0607-96, and P0136-11, P0136-13, P0136-14, P0136-15, P0136-17, P0156-11, P0156-13, P0156-14, P0156-15 or P0156-17 are output	A
   DTC P0605-96 or P0607-96 is output	B

Result:

B

See step  3

Result:

A

See step  2

1. Refer to the P0136-11, P0136-13, P0136-14, P0136-15, P0136-17, P0156-11, P0156-13, P0156-14, P0156-15 or P0156-17 flowchart.

   HINT:

   • If DTC P0136-11, P0136-13, P0136-14, P0136-15, P0136-17, P0156-11, P0156-13, P0156-14, P0156-15 or P0156-17 is output, troubleshoot for that DTC first. Then proceed to "Inspect ECM".

     Refer to DTC P0136-11: O2 Sensor Circuit Bank 1 Sensor 2 Circuit Short to Ground; DTC P0136-13: O2 Sensor Circuit Bank 1 Sensor 2 Circuit Open; DTC P0136-14: O2 Sensor Circuit Bank 1 Sensor 2 Circuit Short to Ground or Open; DTC P0136-15: O2 Sensor Circuit Bank 1 Sensor 2 Circuit Short to Battery or Open; DTC P0136-17: O2 Sensor Circuit Bank 1 Sensor 2 Circuit Voltage Above Threshold; DTC P0136-23: O2 Sensor Circuit Bank 1 Sensor 2 Signal Stuck Low; DTC P013A-00: O2 Sensor Slow Response - Rich to Lean Bank 1 Sensor 2; DTC P013C-00: O2 Sensor Slow Response - Rich to Lean Bank 2 Sensor 2; DTC P0156-11: O2 Sensor Circuit Bank 2 Sensor 2 Circuit Short to Ground; DTC P0156-13: O2 Sensor Circuit Bank 2 Sensor 2 Circuit Open; DTC P0156-14: O2 Sensor Circuit Bank 2 Sensor 2 Circuit Short to Ground or Open; DTC P0156-15: O2 Sensor Circuit Bank 2 Sensor 2 Circuit Short to Battery or Open; DTC P0156-17: O2 Sensor Circuit Bank 2 Sensor 2 Circuit Voltage Above Threshold; DTC P0156-23: O2 Sensor Circuit Bank 2 Sensor 2 Signal Stuck Low [10/2017 - 09/2018] , or refer to DTC P0136-11: O2 Sensor Circuit Bank 1 Sensor 2 Circuit Short to Ground; DTC P0136-13: O2 Sensor Circuit Bank 1 Sensor 2 Circuit Open; DTC P0136-14: O2 Sensor Circuit Bank 1 Sensor 2 Circuit Short to Ground or Open; DTC P0136-15: O2 Sensor Circuit Bank 1 Sensor 2 Circuit Short to Battery or Open; DTC P0136-17: O2 Sensor Circuit Bank 1 Sensor 2 Circuit Voltage Above Threshold; DTC P0136-23: O2 Sensor Circuit Bank 1 Sensor 2 Signal Stuck Low; DTC P013A-00: O2 Sensor Slow Response - Rich to Lean Bank 1 Sensor 2; DTC P013C-00: O2 Sensor Slow Response - Rich to Lean Bank 2 Sensor 2; DTC P0156-11: O2 Sensor Circuit Bank 2 Sensor 2 Circuit Short to Ground; DTC P0156-13: O2 Sensor Circuit Bank 2 Sensor 2 Circuit Open; DTC P0156-14: O2 Sensor Circuit Bank 2 Sensor 2 Circuit Short to Ground or Open; DTC P0156-15: O2 Sensor Circuit Bank 2 Sensor 2 Circuit Short to Battery or Open; DTC P0156-17: O2 Sensor Circuit Bank 2 Sensor 2 Circuit Voltage Above Threshold; DTC P0156-23: O2 Sensor Circuit Bank 2 Sensor 2 Signal Stuck Low [09/2018 - 09/2020] , or refer to DTC P0136-11: O2 Sensor Circuit Bank 1 Sensor 2 Circuit Short to Ground; DTC P0136-13: O2 Sensor Circuit Bank 1 Sensor 2 Circuit Open; DTC P0136-14: O2 Sensor Circuit Bank 1 Sensor 2 Circuit Short to Ground or Open; DTC P0136-15: O2 Sensor Circuit Bank 1 Sensor 2 Circuit Short to Battery or Open; DTC P0136-17: O2 Sensor Circuit Bank 1 Sensor 2 Circuit Voltage Above Threshold; DTC P0136-23: O2 Sensor Circuit Bank 1 Sensor 2 Signal Stuck Low; DTC P013A-00: O2 Sensor Slow Response - Rich to Lean Bank 1 Sensor 2; DTC P013C-00: O2 Sensor Slow Response - Rich to Lean Bank 2 Sensor 2; DTC P0156-11: O2 Sensor Circuit Bank 2 Sensor 2 Circuit Short to Ground; DTC P0156-13: O2 Sensor Circuit Bank 2 Sensor 2 Circuit Open; DTC P0156-14: O2 Sensor Circuit Bank 2 Sensor 2 Circuit Short to Ground or Open; DTC P0156-15: O2 Sensor Circuit Bank 2 Sensor 2 Circuit Short to Battery or Open; DTC P0156-17: O2 Sensor Circuit Bank 2 Sensor 2 Circuit Voltage Above Threshold; DTC P0156-23: O2 Sensor Circuit Bank 2 Sensor 2 Signal Stuck Low [09/2020 - ]

   • If DTC P0605-96 or P0607-96 and P0136-11, P0136-13, P0136-14, P0136-15, P0136-17, P0156-11, P0156-13, P0156-14, P0156-15 or P0156-17 are output, the output voltage of the heated oxygen sensor may remain close to 0 V or become high (around 1 V or higher).

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  8

1. Allow the engine to idle, and then rev the engine.
2. Check for exhaust gas leaks around the heated oxygen sensor.

   If any exhaust gas leaks are present, repair them and proceed to "Perform Confirmation Driving Pattern". If no exhaust gas leaks are present, proceed to "Perform Confirmation Driving Pattern".

   HINT:

   • If no exhaust gas leaks are present, there may be a malfunction in the heated oxygen sensor circuit.
   • If any exhaust gas leaks are present around the heated oxygen sensor, noise appears in the output voltage of the heated oxygen sensor.
   • Perform "Inspection After Repair" after repairing or replacing the exhaust system.

     Refer to INITIALIZATION [10/2017 - 09/2018] , or refer to INITIALIZATION [09/2018 - 09/2020] , or refer to INITIALIZATION [09/2020 - ]

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  4

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Clear the DTC.

   Powertrain > Engine > Clear DTCs

5. Turn the engine switch off and wait for at least 30 seconds.

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  5

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Start the engine.
2. Warm up the engine until the engine coolant temperature is 75°C (167°F) or higher.

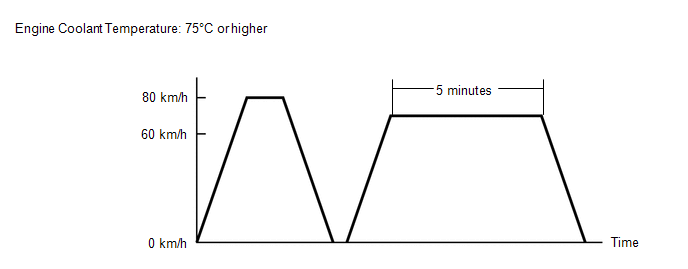

3. Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.
   WARNING:

   When performing the confirmation driving pattern, obey all speed limits and traffic laws.

   1. Accelerate the vehicle to 80 km/h (50 mph) and stop the vehicle.
   2. Drive the vehicle between 60 and 80 km/h (37 and 50 mph) for 5 minutes.
4. Enter the following menus: Powertrain / Engine / Trouble Codes.
5. Read the DTCs.

   Powertrain > Engine > Trouble Codes

   Result

   Result	Proceed to
   DTC P0605-96 or P0607-96, and P0136-11, P0136-13, P0136-14, P0136-15, P0136-17, P0156-11, P0156-13, P0156-14, P0156-15 or P0156-17 are output	A
   Only DTC P0605-96 or P0607-96 is output	B
   DTCs are not output	C

Result:

B

REPLACE ECM. Refer to  REMOVAL [10/2017 - ]

Result:

C

See step  8

Result:

A

See step  6

1. Refer to the P0136-11, P0136-13, P0136-14, P0136-15, P0136-17, P0156-11, P0156-13, P0156-14, P0156-15 or P0156-17 flowchart.

   HINT:

   • If DTC P0136-11, P0136-13, P0136-14, P0136-15, P0136-17, P0156-11, P0156-13, P0156-14, P0156-15 or P0156-17 is output, troubleshoot for that DTC first. Then proceed to "Inspect ECM".

     Refer to DTC P0136-11: O2 Sensor Circuit Bank 1 Sensor 2 Circuit Short to Ground; DTC P0136-13: O2 Sensor Circuit Bank 1 Sensor 2 Circuit Open; DTC P0136-14: O2 Sensor Circuit Bank 1 Sensor 2 Circuit Short to Ground or Open; DTC P0136-15: O2 Sensor Circuit Bank 1 Sensor 2 Circuit Short to Battery or Open; DTC P0136-17: O2 Sensor Circuit Bank 1 Sensor 2 Circuit Voltage Above Threshold; DTC P0136-23: O2 Sensor Circuit Bank 1 Sensor 2 Signal Stuck Low; DTC P013A-00: O2 Sensor Slow Response - Rich to Lean Bank 1 Sensor 2; DTC P013C-00: O2 Sensor Slow Response - Rich to Lean Bank 2 Sensor 2; DTC P0156-11: O2 Sensor Circuit Bank 2 Sensor 2 Circuit Short to Ground; DTC P0156-13: O2 Sensor Circuit Bank 2 Sensor 2 Circuit Open; DTC P0156-14: O2 Sensor Circuit Bank 2 Sensor 2 Circuit Short to Ground or Open; DTC P0156-15: O2 Sensor Circuit Bank 2 Sensor 2 Circuit Short to Battery or Open; DTC P0156-17: O2 Sensor Circuit Bank 2 Sensor 2 Circuit Voltage Above Threshold; DTC P0156-23: O2 Sensor Circuit Bank 2 Sensor 2 Signal Stuck Low [10/2017 - 09/2018] , or refer to DTC P0136-11: O2 Sensor Circuit Bank 1 Sensor 2 Circuit Short to Ground; DTC P0136-13: O2 Sensor Circuit Bank 1 Sensor 2 Circuit Open; DTC P0136-14: O2 Sensor Circuit Bank 1 Sensor 2 Circuit Short to Ground or Open; DTC P0136-15: O2 Sensor Circuit Bank 1 Sensor 2 Circuit Short to Battery or Open; DTC P0136-17: O2 Sensor Circuit Bank 1 Sensor 2 Circuit Voltage Above Threshold; DTC P0136-23: O2 Sensor Circuit Bank 1 Sensor 2 Signal Stuck Low; DTC P013A-00: O2 Sensor Slow Response - Rich to Lean Bank 1 Sensor 2; DTC P013C-00: O2 Sensor Slow Response - Rich to Lean Bank 2 Sensor 2; DTC P0156-11: O2 Sensor Circuit Bank 2 Sensor 2 Circuit Short to Ground; DTC P0156-13: O2 Sensor Circuit Bank 2 Sensor 2 Circuit Open; DTC P0156-14: O2 Sensor Circuit Bank 2 Sensor 2 Circuit Short to Ground or Open; DTC P0156-15: O2 Sensor Circuit Bank 2 Sensor 2 Circuit Short to Battery or Open; DTC P0156-17: O2 Sensor Circuit Bank 2 Sensor 2 Circuit Voltage Above Threshold; DTC P0156-23: O2 Sensor Circuit Bank 2 Sensor 2 Signal Stuck Low [09/2018 - 09/2020] , or refer to DTC P0136-11: O2 Sensor Circuit Bank 1 Sensor 2 Circuit Short to Ground; DTC P0136-13: O2 Sensor Circuit Bank 1 Sensor 2 Circuit Open; DTC P0136-14: O2 Sensor Circuit Bank 1 Sensor 2 Circuit Short to Ground or Open; DTC P0136-15: O2 Sensor Circuit Bank 1 Sensor 2 Circuit Short to Battery or Open; DTC P0136-17: O2 Sensor Circuit Bank 1 Sensor 2 Circuit Voltage Above Threshold; DTC P0136-23: O2 Sensor Circuit Bank 1 Sensor 2 Signal Stuck Low; DTC P013A-00: O2 Sensor Slow Response - Rich to Lean Bank 1 Sensor 2; DTC P013C-00: O2 Sensor Slow Response - Rich to Lean Bank 2 Sensor 2; DTC P0156-11: O2 Sensor Circuit Bank 2 Sensor 2 Circuit Short to Ground; DTC P0156-13: O2 Sensor Circuit Bank 2 Sensor 2 Circuit Open; DTC P0156-14: O2 Sensor Circuit Bank 2 Sensor 2 Circuit Short to Ground or Open; DTC P0156-15: O2 Sensor Circuit Bank 2 Sensor 2 Circuit Short to Battery or Open; DTC P0156-17: O2 Sensor Circuit Bank 2 Sensor 2 Circuit Voltage Above Threshold; DTC P0156-23: O2 Sensor Circuit Bank 2 Sensor 2 Signal Stuck Low [09/2020 - ]

   • If DTC P0605-96 or P0607-96 and P0136-11, P0136-13, P0136-14, P0136-15, P0136-17, P0156-11, P0156-13, P0156-14, P0156-15 or P0156-17 are output, the output voltage of the heated oxygen sensor may remain close to 0 V or become high (around 1 V or higher).

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  7

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Clear the DTC.

   Powertrain > Engine > Clear DTCs

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  8

1. Stop the engine and wait for 30 minutes.
2. Start the engine and allow it to idle for 2 minutes.
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine / Trouble Codes.
5. Read the DTCs.

   Powertrain > Engine > Trouble Codes

   Result

   Result	Proceed to
   DTCs are not output	A
   DTC P0605-96 or P0607-96 is output	B

Result:

A

END

Result:

B

REPLACE ECM. Refer to  REMOVAL [10/2017 - ]
