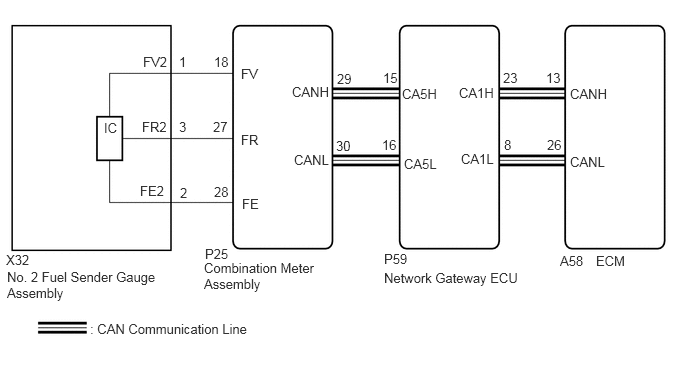

DTC P2067: Fuel Level Sensor "B" Circuit Low; DTC P2068: Fuel Level Sensor "B" Circuit High [07/2020 - ]: Wiring Diagram

GTY948002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
