Disassembly [01/2017 - 05/2023]: Procedure

  1. REMOVE STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY
    1. Using a drill, drill a hole in each steering lock set bolt and insert a screw extractor.
    2. GTY814422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Using the screw extractor, remove the 2 steering lock set bolts and steering lock actuator or upper bracket assembly.

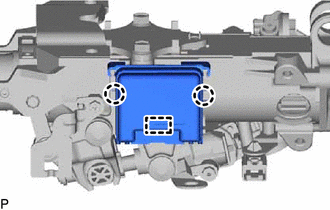

  2. REMOVE MULTIPLEX TILT AND TELESCOPIC ECU
    1. GTY814420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disengage the 2 claws and guide to remove the multiplex tilt and telescopic ECU from the steering column assembly.

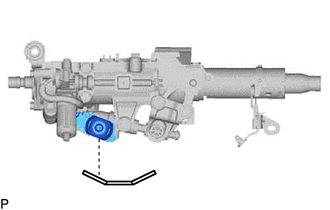

  3. REMOVE CUSHION
    1. Remove the cushion from the tilt motor.
      GTY814408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
