Reassembly [01/2017 - 05/2023]: Procedure
- INSTALL CUSHION
- Align the center of the cutout on a new cushion to the center of the groove on the tilt motor and attach it in the position shown in the illustration.

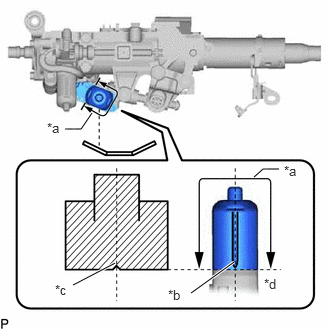

*a Application Area *b Tilt Motor Groove Center *c Center of Cushion Cutout *d Incorrect Application NOTE:- Apply the cushion within the application area so that the tilt motor cannot be seen.
- Avoid creating wrinkles as much as possible when attaching the cushion.
- Align the center of the cutout on a new cushion to the center of the groove on the tilt motor and attach it in the position shown in the illustration.
- INSTALL MULTIPLEX TILT AND TELESCOPIC ECU
- Engage the 2 claws and guide to install the multiplex tilt and telescopic ECU.
- INSTALL STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY NOTE:
If the steering lock actuator or upper bracket assembly is replaced, refer to Registration.
Refer to REGISTRATION [01/2017 - 09/2018] , or refer to REGISTRATION [09/2018 - 04/2020] , or refer to REGISTRATION [04/2020 - 05/2023]
