Installation [12/2017 - 09/2018]: Procedure

WARNING: This page is about a different car, the 2020 Lexus LS 500, 2019 Lexus LS 500, and 2018 Lexus LS 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL DRIVING SUPPORT ECU ASSEMBLY
    NOTE:

    Do not use a driving support ECU if it has been dropped or has been subjected to any strong impact.

    1. for Stereo Camera Type:

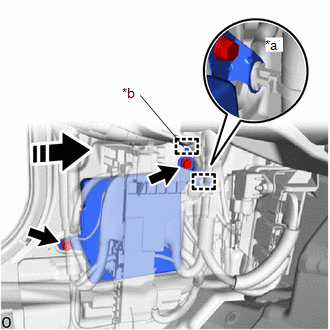

      GTY799900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wire Harness Clamp
      *b Hook
      Install in this Direction
      NOTE:

      Do not use a driving support ECU if it has been dropped or has been subjected to any strong impact.

      1. Install the driving support ECU in the direction of the arrow shown in the illustration and attach the hook.
      2. Install the 2 bolts.

        Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

      3. Attach the wire harness clamp.
    2. for Mono Camera Type:

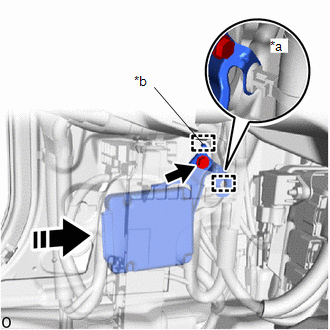

      GTY776145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wire Harness Clamp
      *b Hook
      Install in this Direction
      NOTE:

      Do not use a driving support ECU if it has been dropped or has been subjected to any strong impact.

      1. Install the driving support ECU in the direction of the arrow shown in the illustration and attach the hook.
      2. Install the bolt.

        Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

      3. Attach the wire harness clamp.
    3. Attach the clip as shown in the illustration to install the connector holder.

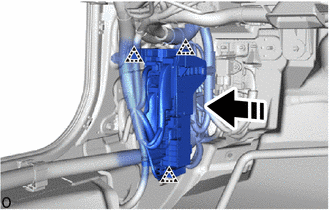

      GTY828825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    4. Connect the connector.

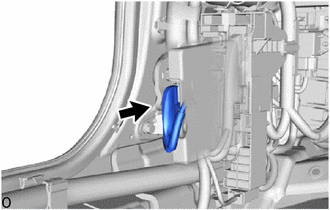

      GTY807290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 32

  3. INSTALL INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 33

  4. INSTALL COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 31

  5. INSTALL FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 42

  6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [12/2017 - 09/2018]

  7. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11
