Components [10/2017 - 10/2020]

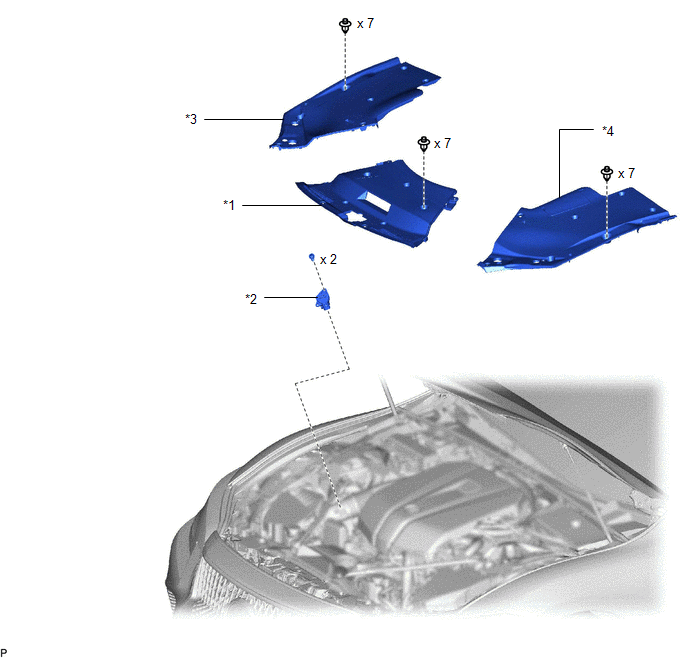

Fig 1: Mass Air Flow Meter Replacement Components [10/2017 - 10/2020]
GTY793494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 LOWER RADIATOR AIR DEFLECTOR *2 MASS AIR FLOW METER SUB-ASSEMBLY
*3 RADIATOR COVER PLATE *4 UPPER RADIATOR SUPPORT SEAL
