System Diagram [11/2021 - 10/2022]

  1. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Start Function)

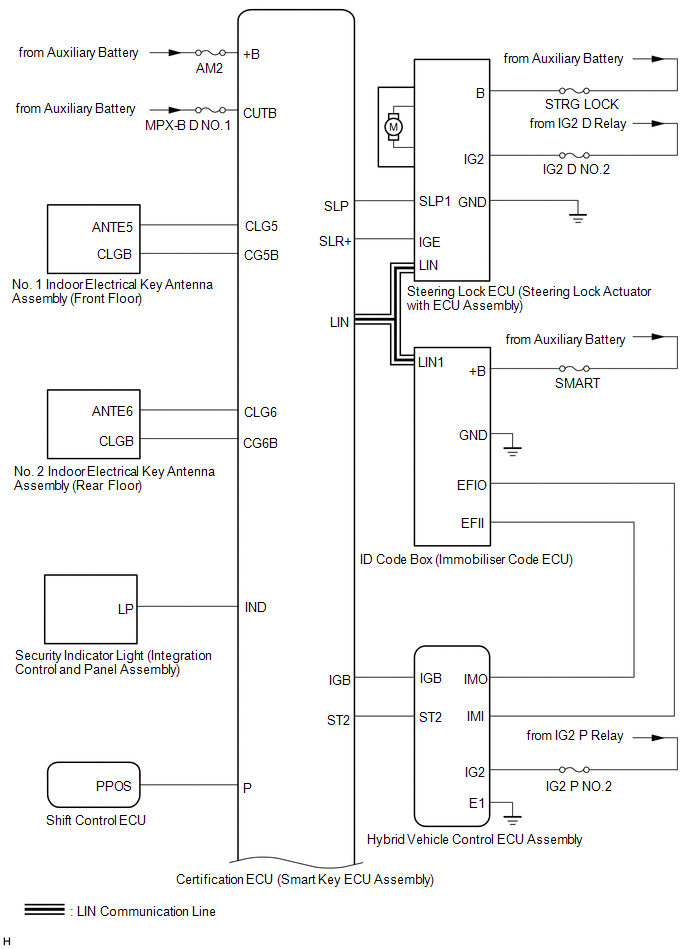

    GTY1130188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

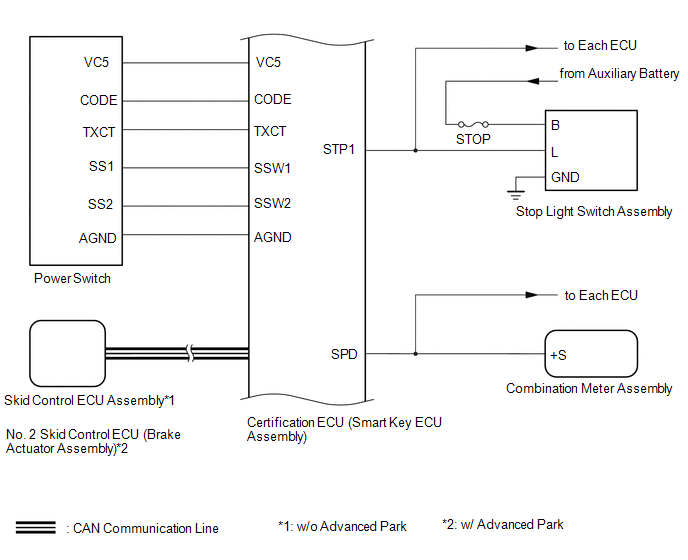

    GTY1085518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

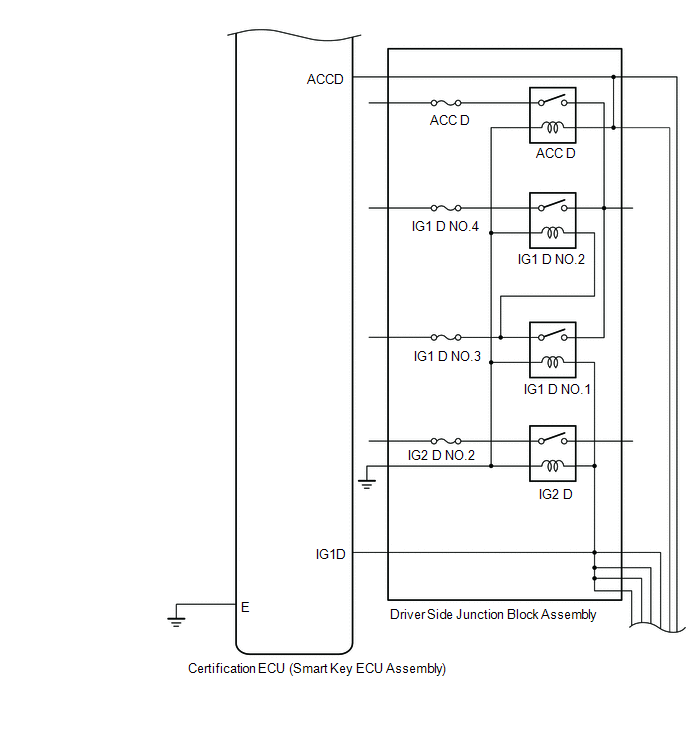

    GTY788018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

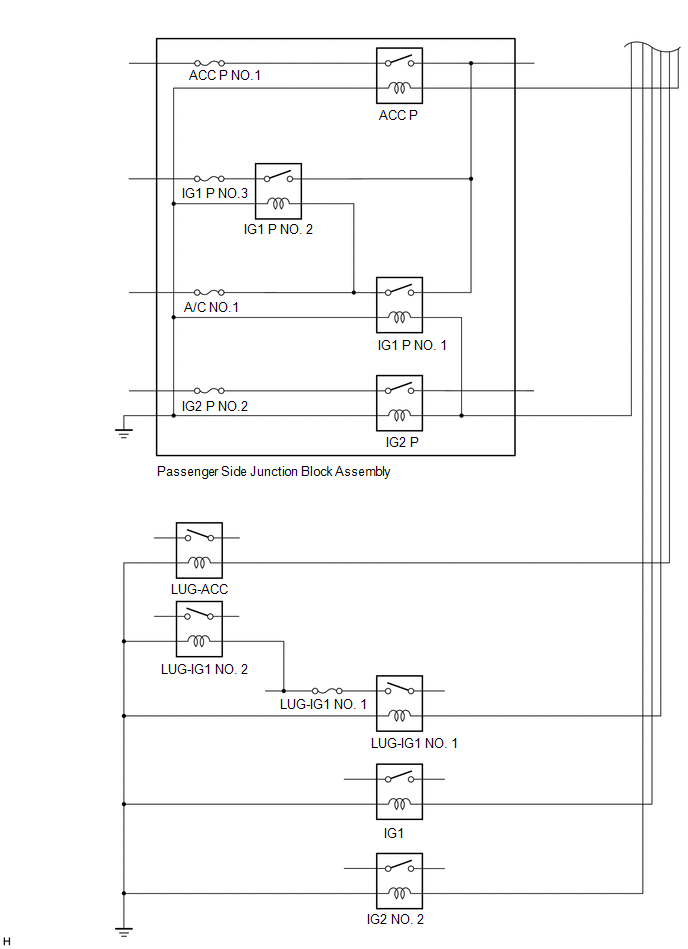

    GTY807407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Entry Function)

    Refer to SYSTEM DIAGRAM [10/2017 - 10/2023]
