System Diagram [09/2015 - ]

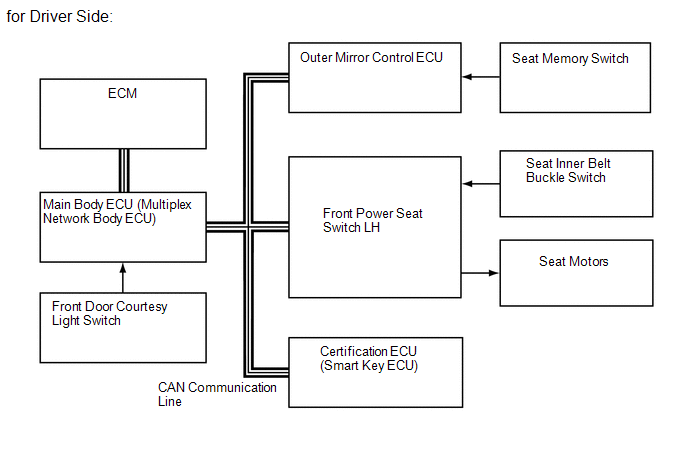

Fig 1: Front Power Seat Control System Diagram (For Driver Side)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

COMMUNICATION TABLE

Sender	Receiver	Signal	Line
ECM	Front Power Seat Switch	Shift position signal	CAN
Outer Mirror Control ECU	Front Power Seat Switch LH	Seat memory switch 1 signal Seat memory switch 2 signal Seat memory switch 3 signal	CAN
Main Body ECU (Multiplex Network Body ECU)	Front Power Seat Switch LH	Driver door courtesy light switch signal Door lock/unlock signal Key ID signal	CAN
Certification ECU (Smart Key ECU)	Front Power Seat Switch LH	Key ID signal for smart memory call registration	CAN
Front Power Seat Switch LH	Outer Mirror Control ECU	Seat memory switch 1 command signal Seat memory switch 2 command signal Seat memory switch 3 command signal	CAN

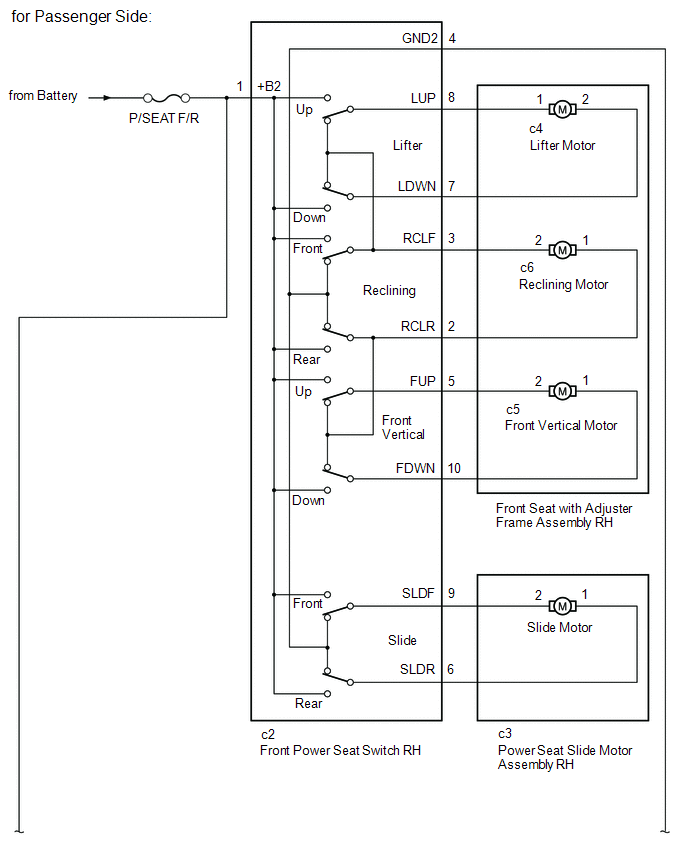

Fig 2: Front Power Seat Control System Diagram (For Passenger Side)

Fig 3: Front Power Seat Control System Diagram
