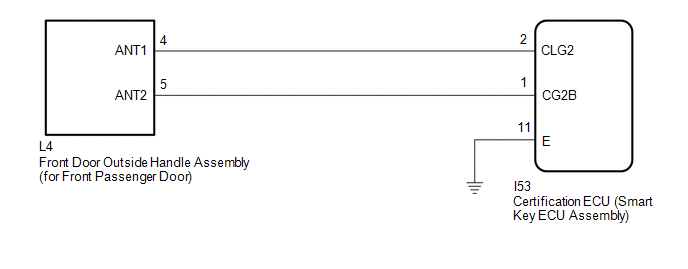

Front Passenger Side Door Entry Unlock Function does not Operate [10/2014 - ]: Wiring Diagram

GTY508194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
