System Diagram [10/2014 - 09/2017]

  1. DOOR BUS LINES

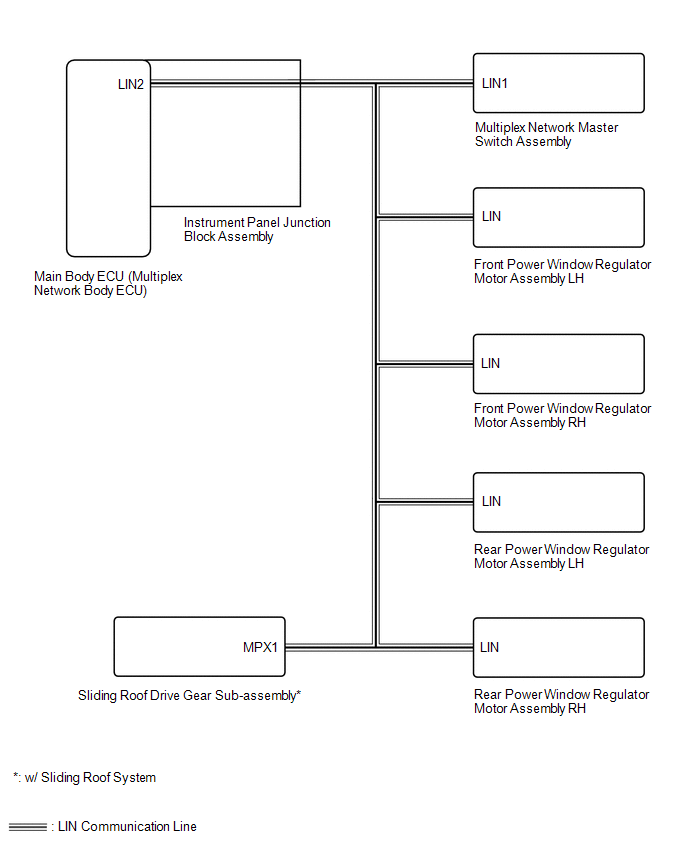

    Fig 1: Door Bus Lines System Diagram
    GTY498326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CERTIFICATION BUS LINES

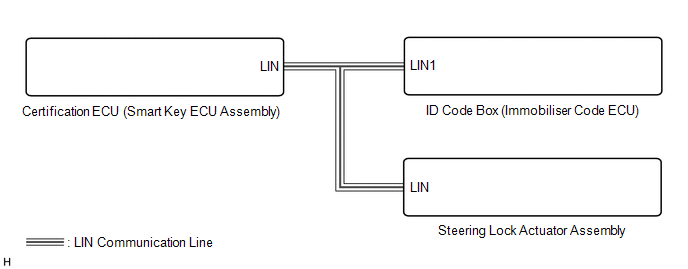

    Fig 2: Certification Bus Lines System Diagram
    GTY503850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. AIR CONDITIONING BUS LINES

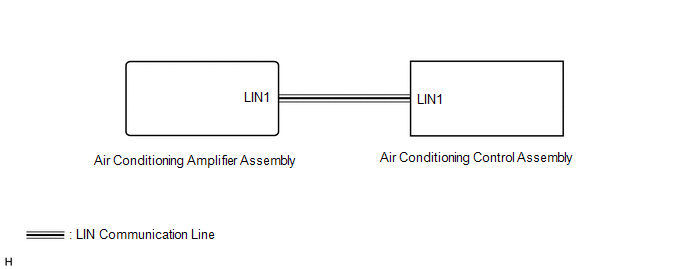

    Fig 3: Air Conditioning Bus Lines System Diagram
    GTY513394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. WINDSHIELD WIPER BUS LINE (w/ Rain Sensor)

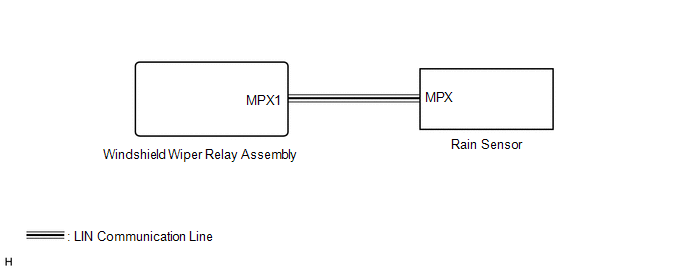

    Fig 4: Windshield Wiper Bus Line (W/ Rain Sensor) System Diagram
    GTY501500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. LIGHTING BUS LINES (for Triple Beam Headlight)

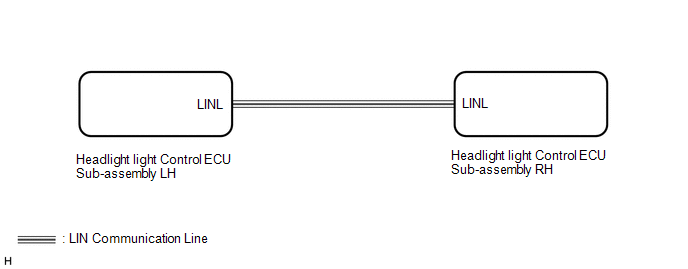

    Fig 5: Lighting Bus Lines (for Triple Beam Headlight) System Diagram
    GTY519803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
