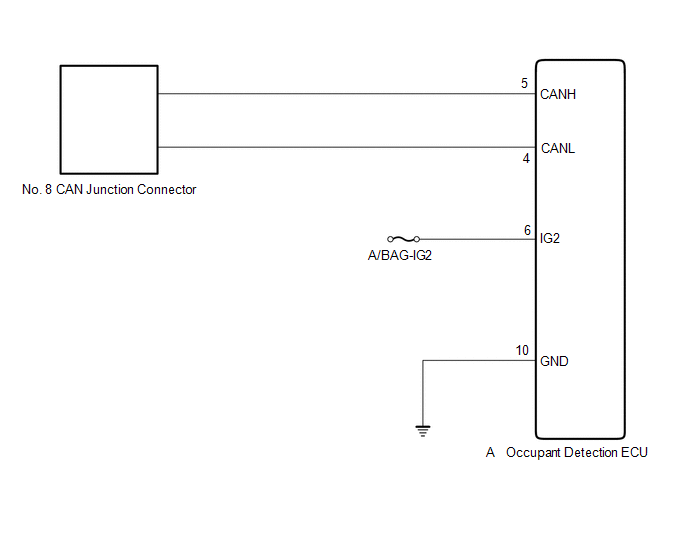

Restraints Occupant Classification System Module Communication Stop Mode [09/2015 - ]: Wiring Diagram

GTY632412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
