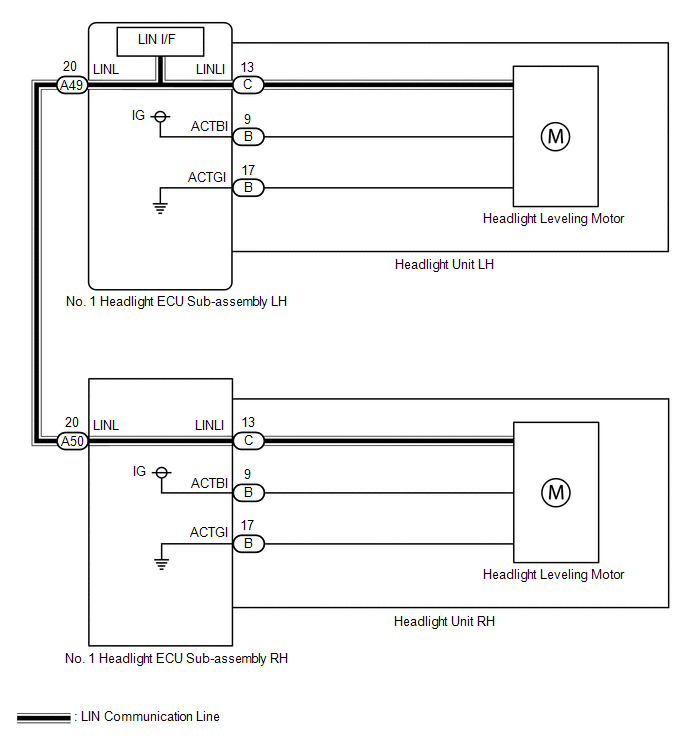

DTC B2424: Headlight Beam Level Control Motor LH Lost Communication; DTC B2425: Headlight Beam Level Control Motor RH Lost Communication [08/2019 - ]: Wiring Diagram

GTY961994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
