DTC B242E: Open in IG Circuit [08/2019 - ]: Procedure
- CONFIRM MODEL
- Choose the model to be inspected.
Result
Result Proceed to for Multiple Beam Headlight A for Single Beam Headlight B
Result:
B
See step 4
Result:
A
See step 2
- Choose the model to be inspected.
- CLEAR DTC
- Connect the Techstream to the DLC3.
- Turn the engine switch on (IG).
- Turn the Techstream on.
- Enter the following menus: Body Electrical / AFS / Trouble Codes.
- Clear the DTCs.
Body Electrical > AFS > Clear DTCs
Result
Proceed to NEXT
Result:
NEXT
See step 3
- CHECK FOR DTC
- Connect the Techstream to the DLC3.
- Turn the engine switch on (IG).
- Wait 10 seconds or more.
- Turn the Techstream on.
- Enter the following menus: Body Electrical / AFS / Trouble Codes.
- Check for DTCs.
Body Electrical > AFS > Trouble Codes
OK
DTC B242E is not output.
Result
Proceed to OK NG
Result:
OK
USE SIMULATION METHOD TO CHECK. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [08/2019 - ]
Result:
NG
See step 6
- CLEAR DTC
- Connect the Techstream to the DLC3.
- Turn the engine switch on (IG).
- Turn the Techstream on.
- Enter the following menus: Body Electrical / HL Auto Leveling / Trouble Codes.
- Clear the DTCs.
Body Electrical > HL Auto Leveling > Clear DTCs
Result
Proceed to NEXT
Result:
NEXT
See step 5
- CHECK FOR DTC
- Connect the Techstream to the DLC3.
- Turn the engine switch on (IG).
- Wait 10 seconds or more.
- Turn the Techstream on.
- Enter the following menus: Body Electrical / HL Auto Leveling / Trouble Codes.
- Check for DTCs.
Body Electrical > HL Auto Leveling > Trouble Codes
OK
DTC B242E is not output.
Result
Proceed to OK NG
Result:
OK
USE SIMULATION METHOD TO CHECK. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [08/2019 - ]
Result:
NG
See step 6
- INSPECT NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH (IG TERMINAL VOLTAGE)

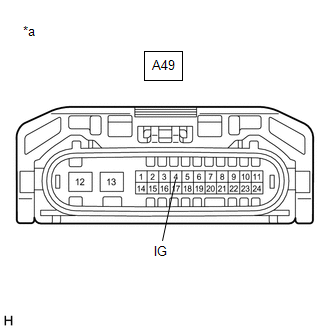

*a Front view of wire harness connector
(to No. 1 Headlight ECU Sub-assembly LH)- Disconnect the A49 No. 1 headlight ECU sub-assembly LH connector.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition A49-4 (IG) - Body ground Engine switch on (IG) 11 to 14 V Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 7
- CHECK HARNESS AND CONNECTOR (NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH - BODY GROUND)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition A49-12 (GND) - Body ground Always Below 1 Ω Result
Proceed to OK NG
Result:
OK
REPLACE NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH. Refer to REMOVAL [08/2019 - ]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
- Measure the resistance according to the value(s) in the table below.
