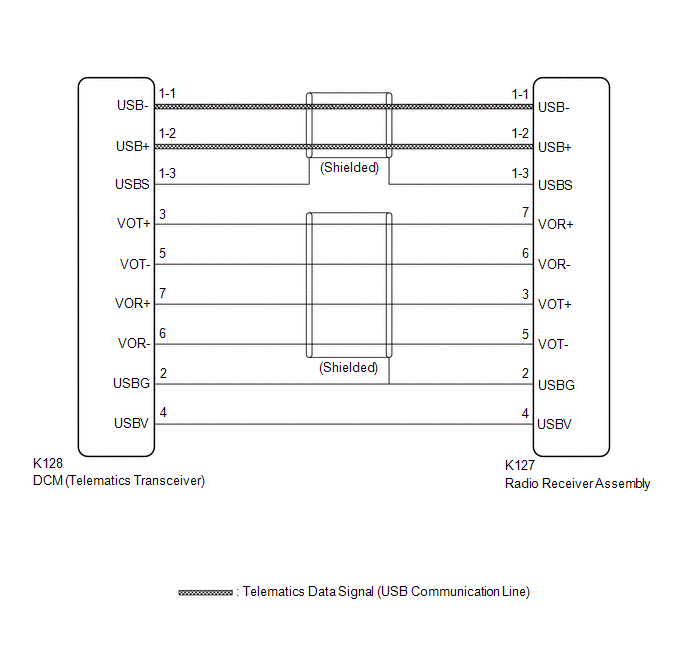

DCM Data Signal Circuit between Navigation ECU and DCM [09/2015 - 12/2017]: Wiring Diagram

GTY515940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
