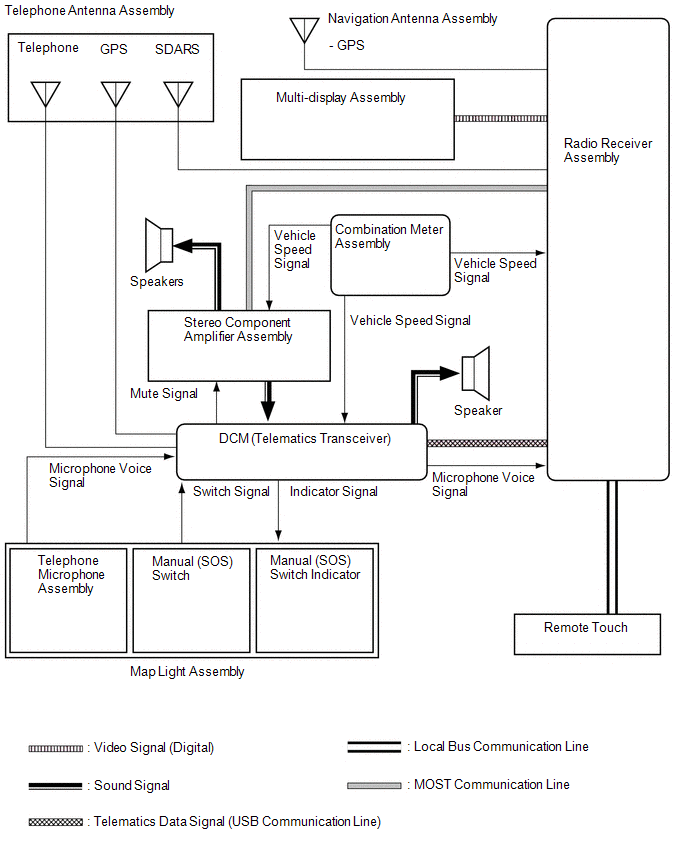

System Diagram [09/2015 - 12/2017]
HINT:
Refer to following systems for details of the system diagram for LEXUS ENFORM System.
- Navigation System
Refer to SYSTEM DIAGRAM [09/2015 - 08/2016] , or refer to SYSTEM DIAGRAM [08/2016 - 12/2017]
- Safety Connect System
Refer to SYSTEM DIAGRAM [09/2015 - 12/2017]
