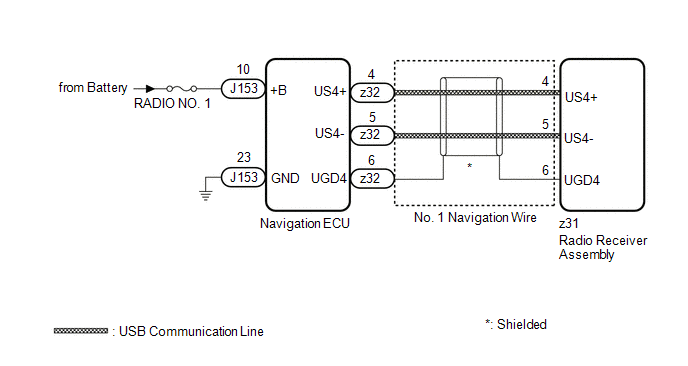

DTC B1543: Extension Module Disconnected 2 [08/2019 - ]: Wiring Diagram

GTY960125

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
