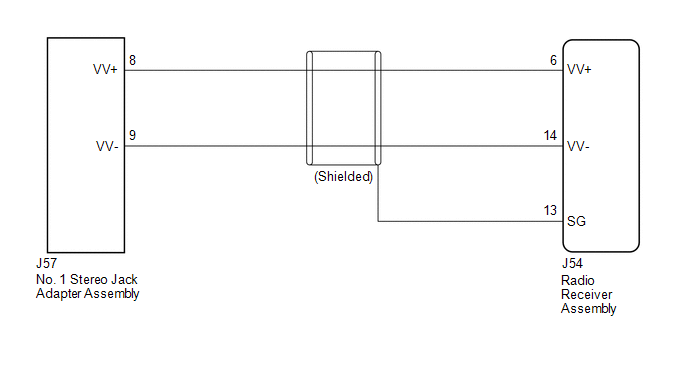

Display Signal Circuit between Navigation Receiver Assembly and Stereo Jack Adapter [09/2015 - 08/2019]: Wiring Diagram

GTY675092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
