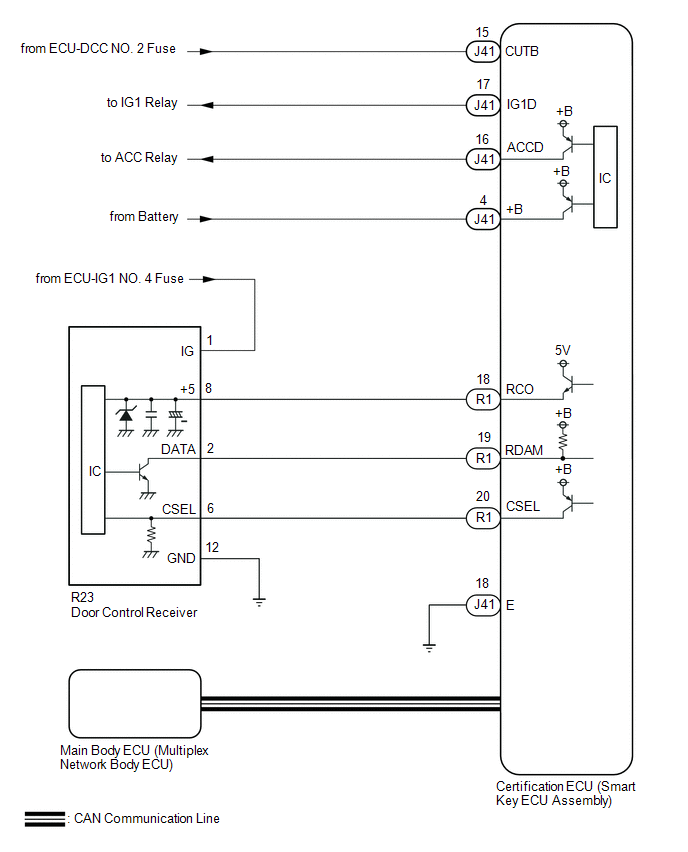

All Door Entry Lock/Unlock Functions and Wireless Functions do not Operate [09/2015 - ]: Wiring Diagram

GTY627677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
