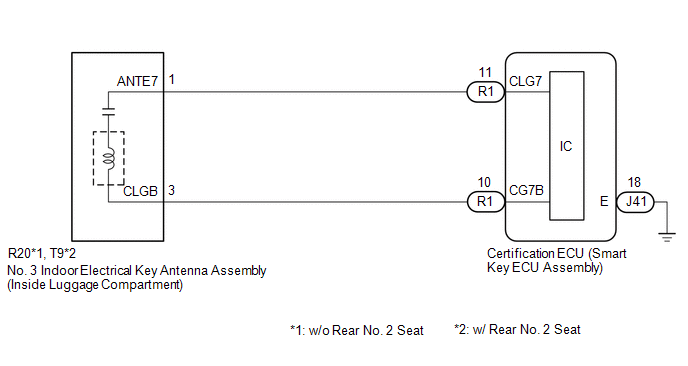

DTC B27A7: Open in Inside Luggage Compartment Electrical Key Oscillator Circuit [12/2017 - ]: Wiring Diagram

GTY793741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
