RX 350 Base, AWD
>>
Repair and Diagnosis (Single Page)
>>
Engine Performance
>>
System
>>
Engine Control System - Diagnostics - Circuit Tests
>>
SFI System
>>
Circuit Tests
>>
Ignition Circuit [08/2019 - ]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

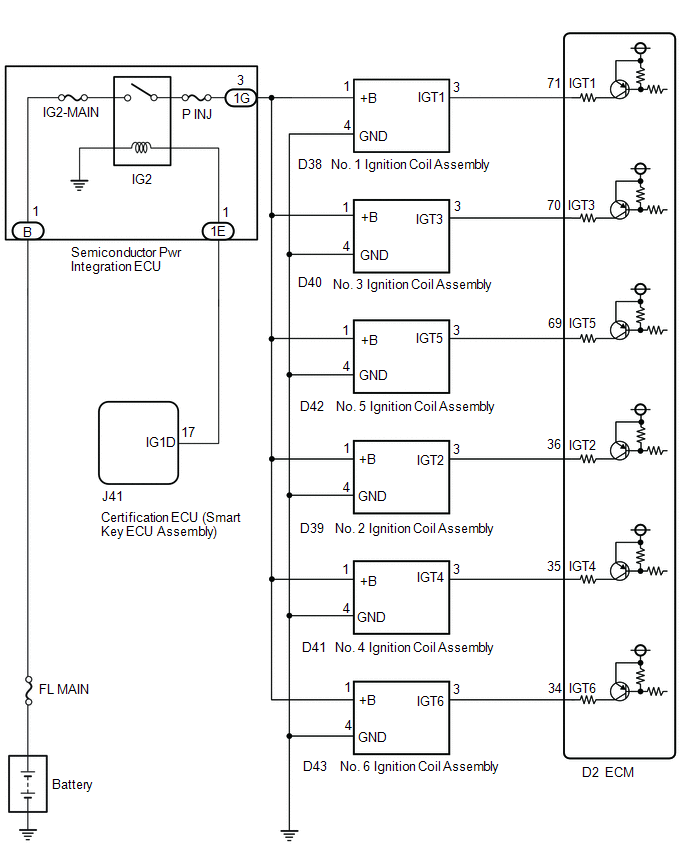

Ignition Circuit [08/2019 - ]: Wiring Diagram
