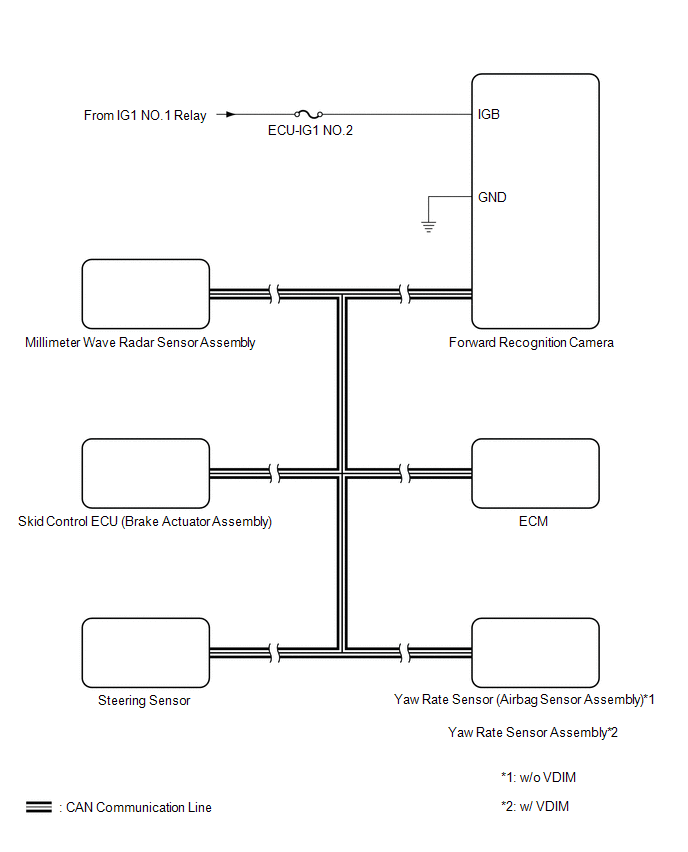

System Diagram [08/2019 - ]

GTY951538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

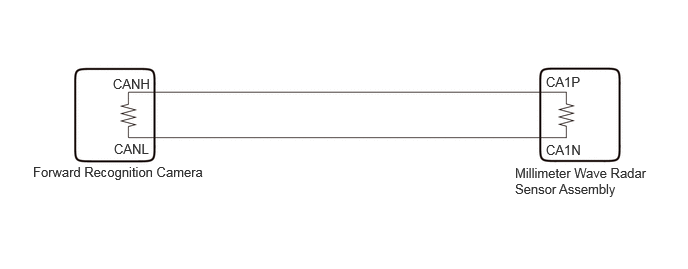

  1. LOCAL BUS
    GTY929748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
