System Diagram [07/2022 - ]

DRIVER SEAT

Fig 1: Driver Seat Diagram [07/2022 - ] (1 Of 4)

GTY836733

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Driver Seat Diagram [07/2022 - ] (2 Of 4)

GTY818942

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

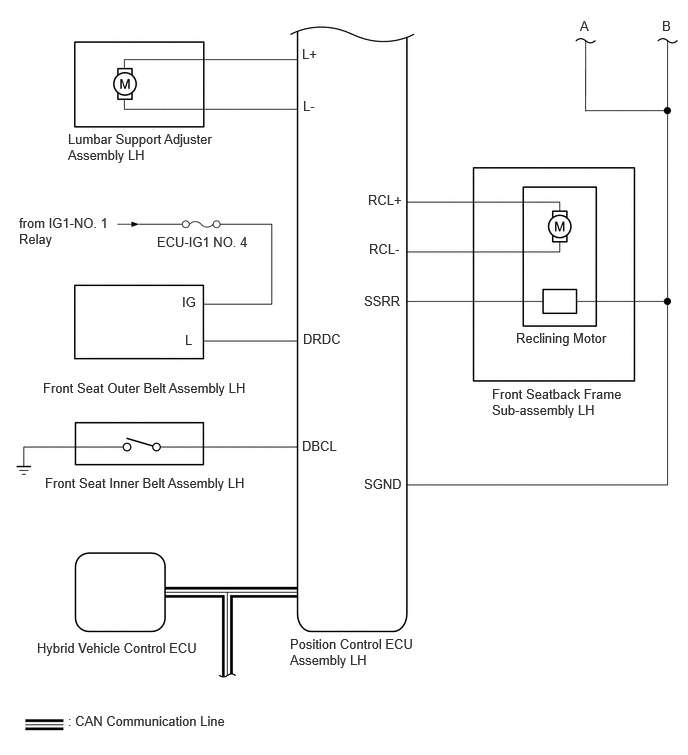

Fig 3: Driver Seat Diagram [07/2022 - ] (3 Of 4)

GTY1133867

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Driver Seat Diagram [07/2022 - ] (4 Of 4)

GTY805268

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

COMMUNICATION TABLE

Sender	Receiver	Signal	Line
Hybrid Vehicle Control ECU	Main Body ECU (Multiplex Network Body ECU)	Shift position P signal	CAN
Outer Mirror Control ECU Assembly LH	Main Body ECU (Multiplex Network Body ECU)	Seat memory switch signal	CAN
Main Body ECU (Multiplex Network Body ECU)	Position Control ECU Assembly	Shift position P signal Transmission information Driving position buzzer request Driver seat position request Driver seat position data	CAN
Certification ECU (Smart Key ECU Assembly)	Main Body ECU (Multiplex Network Body ECU)	Ignition switch signal Memory call replay request Key identification acquisition condition	CAN
Position Control ECU Assembly	Main Body ECU (Multiplex Network Body ECU)	State signal of driver seat State signal of driving position buzzer	CAN
Multiplex Network Master Switch Assembly	Main Body ECU (Multiplex Network Body ECU)	Door control switch signal	LIN
