System Diagram [08/2021 - 07/2022]

  1. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Entry Function)

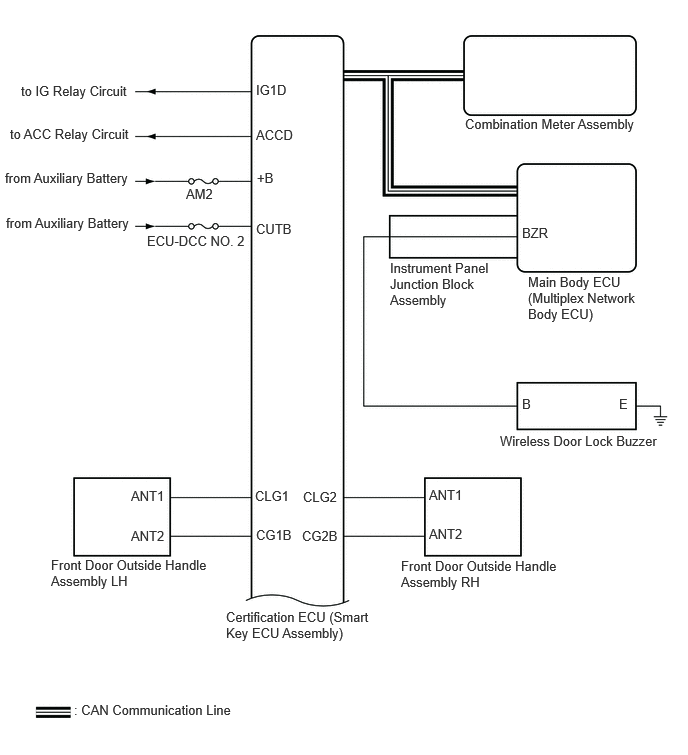

    GTY1087760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

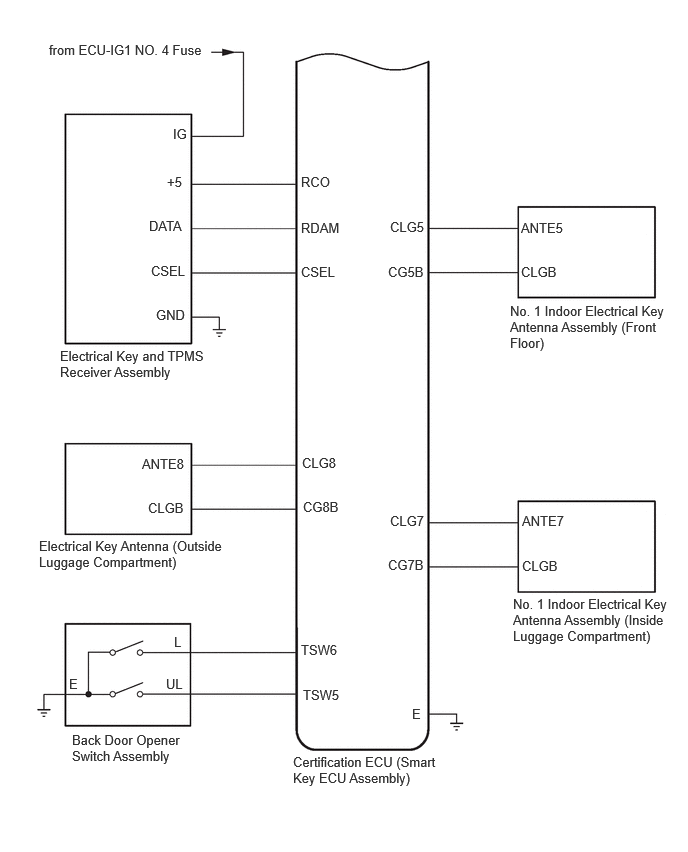

    GTY1087935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Start Function)

    Refer to SYSTEM DIAGRAM [08/2021 - 07/2022]

  3. POWER DOOR LOCK CONTROL SYSTEM

    Refer to SYSTEM DIAGRAM [10/2018 - 07/2022]

  4. WIRELESS DOOR LOCK CONTROL SYSTEM

    Refer to SYSTEM DIAGRAM [10/2018 - 07/2022]

  5. POWER BACK DOOR SYSTEM (w/ Power Back Door System)

    Refer to SYSTEM DIAGRAM [10/2018 - ]
