System Diagram [10/2018 - 10/2019]

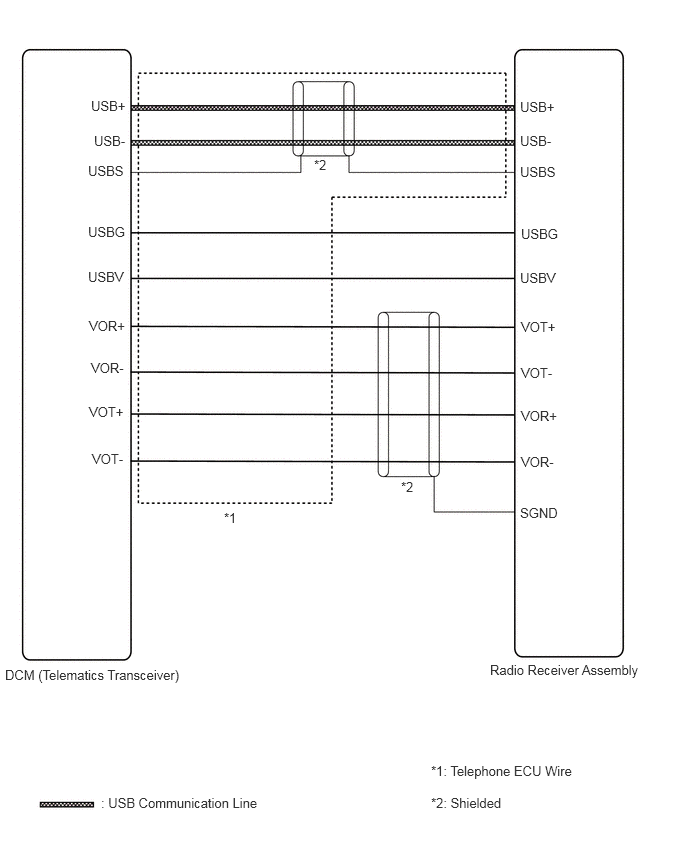

  1. w/o Navigation System
    GTY785482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

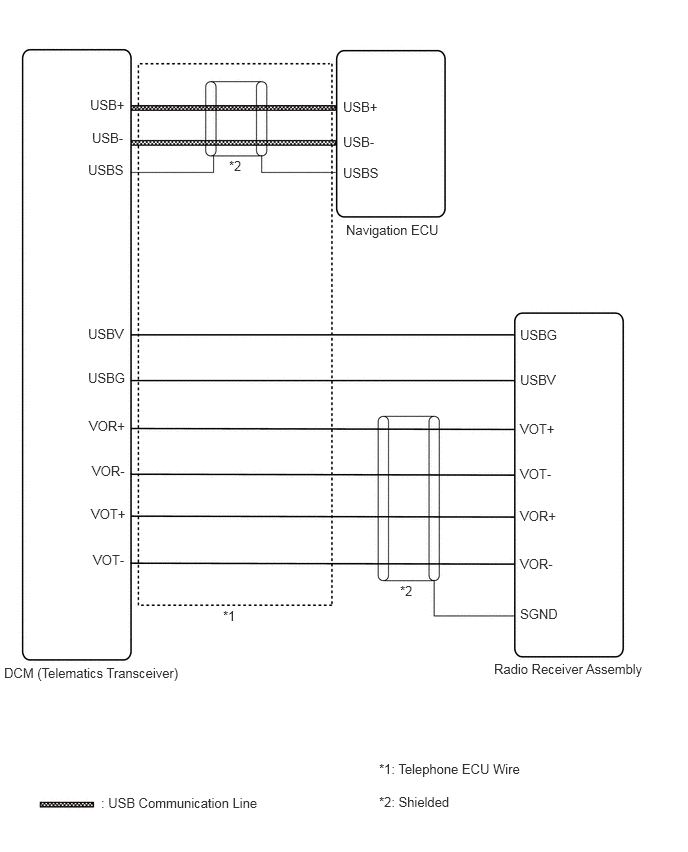

  2. w/ Navigation System
    GTY779835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
